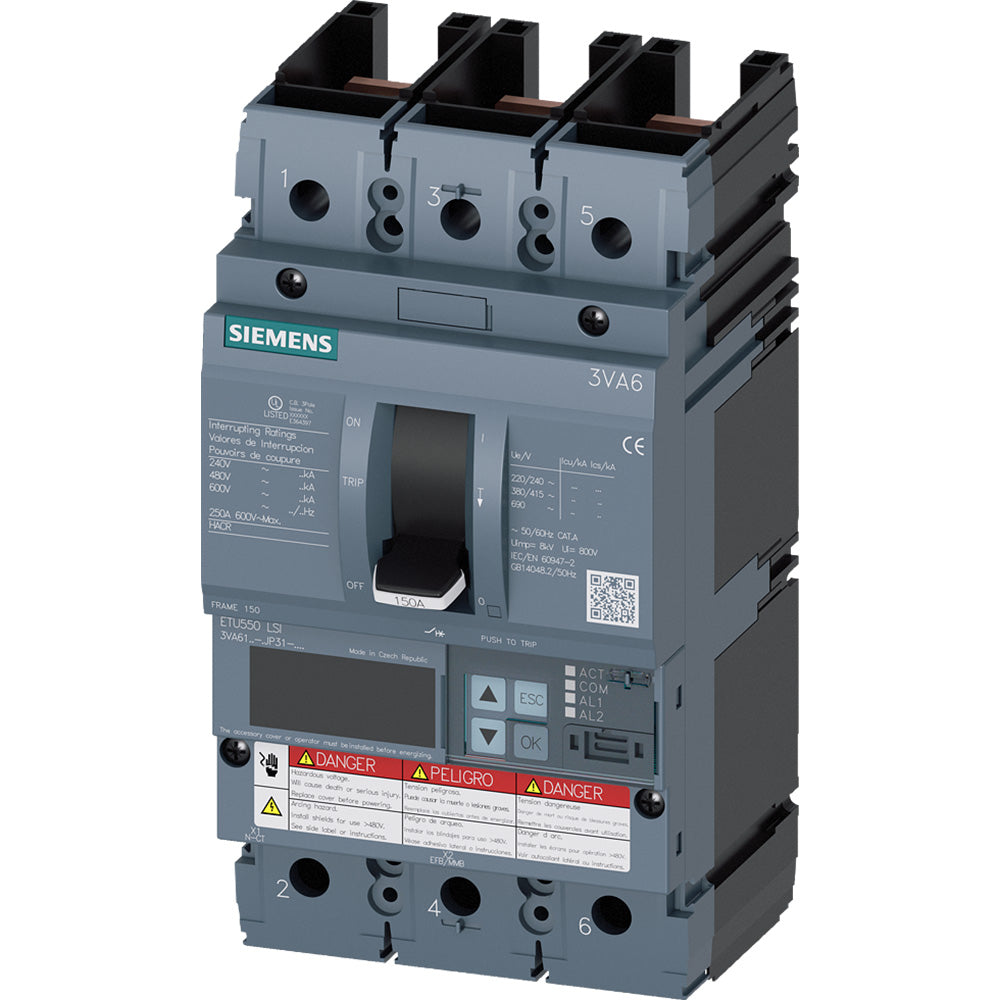

3VA6110-8JP31-0AA0 - Siemens 100A 600V 3-Pole Molded Case Circuit Breaker, 3VA61 Frame, 150kA Interrupt, ETU550 LSI Trip Unit, UL Listed

3VA6110-8JP31-0AA0

3VA6110-8JP31-0AA0 is a Siemens 3VA6 molded case circuit breaker designed for industrial and commercial power distribution applications with advanced electronic protection and metering capabilities. This 3-pole unit features a 100A rated current, 600V maximum voltage rating, and 150 kA breaking capacity at 480V, making it suitable for system protection in three-phase AC networks. The breaker incorporates an electronic trip unit (ETU550) with load-side insulation monitoring (LSI), adjustable overload protection from 40A to 100A, and short-circuit protection with adjustable response values. Built-in measurement display and optional communication connectivity via Modbus TCP, Modbus RTU, PROFINET, and PROFIBUS enable integration into modern control systems. The compact design supports fixed installation mounting with IP40 protection rating and UL 489 certification for North American applications.

• Rated Current: 100A
• Maximum Voltage: 600V AC
• Number of Poles: 3
• Breaking Capacity: 150 kA at 480V
• Frame Size: UL Frame 150
• Trip Unit: Electronic (ETU550) with LSI
• Overload Protection: Adjustable 40A-100A
• Short-Circuit Protection: Adjustable 0.6x-10x In
• Mounting Type: Fixed Installation
• Protection Rating: IP40
• Certifications: UL 489
• Dimensions: 7.8 in H x 4.1 in W

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3VA6110-8JP31-0AA0
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : 3VA
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 150kA@480V
• Connection : Feed-Thru
• Functions : LSI - Long Time, Short Time and Instantaneous
• Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
• Protection : Solid State

Product Data

• UPC : 80476630595
• GTIN : 00804766305955
• Weight : 8
• Standards : UL Listed
• Certification : UL Listed
