3VA6110-0HL31-0AA0 - Siemens 600V 100A 3 Pole Molded Case Circuit Breaker UL Frame 150 ETU320 LI

3VA6110-0HL31-0AA0

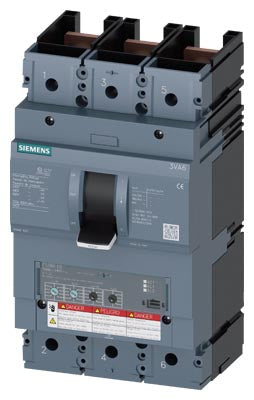

3VA6110-0HL31-0AA0 is a Siemens Sentron molded case circuit breaker designed for low-voltage power distribution and line protection applications. This 3-pole breaker combines compact design with advanced electronic trip protection, making it suitable for industrial and commercial installations requiring reliable overcurrent and short-circuit protection.Technical Overview: The breaker features a UL Frame 150 with an ETU320 electronic trip unit providing adjustable overload and instantaneous protection. It delivers 200 kA interrupt rating at 480 V and 100 kA at 600 V, ensuring superior fault-clearing capability. The unit operates across 50/60 Hz frequencies and includes universal accessory compatibility for auxiliary switches and shunt trips. All 3VA61 electronic trip breakers are UL listed for reverse feed applications and include QR code access to technical documentation.

• Amperage Rating: 100 A
• Number of Poles: 3
• Voltage Rating: 600 VAC
• Interrupt Rating: 200 kA at 480 V, 100 kA at 600 V
• Frame: 3VA61 UL Frame 150
• Trip Unit: ETU320 Electronic with LI (Low Instantaneous) characteristic
• Frequency: 50/60 Hz
• Enclosure Type: IP40
• Operating Temperature: -25 to 70 degrees C
• Dimensions: 4.1 in W x 4.2 in D x 7.8 in H
• Net Weight: 2.2 kg
• Switching Capacity Class: E per IEC 60947

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3VA6110-0HL31-0AA0
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : 3VA
• Voltage : 600
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 200kA@480V
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
• Protection : ETU320

Product Data

• UPC : 804766977435
• Weight : 2
• Standards : UL Listed
• Certification : UL Listed
