Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA5330-5EC31-0AA0

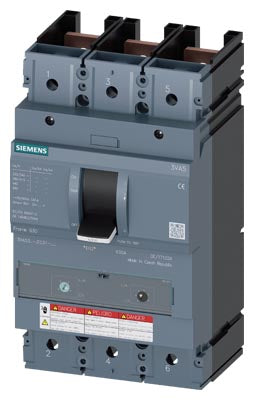

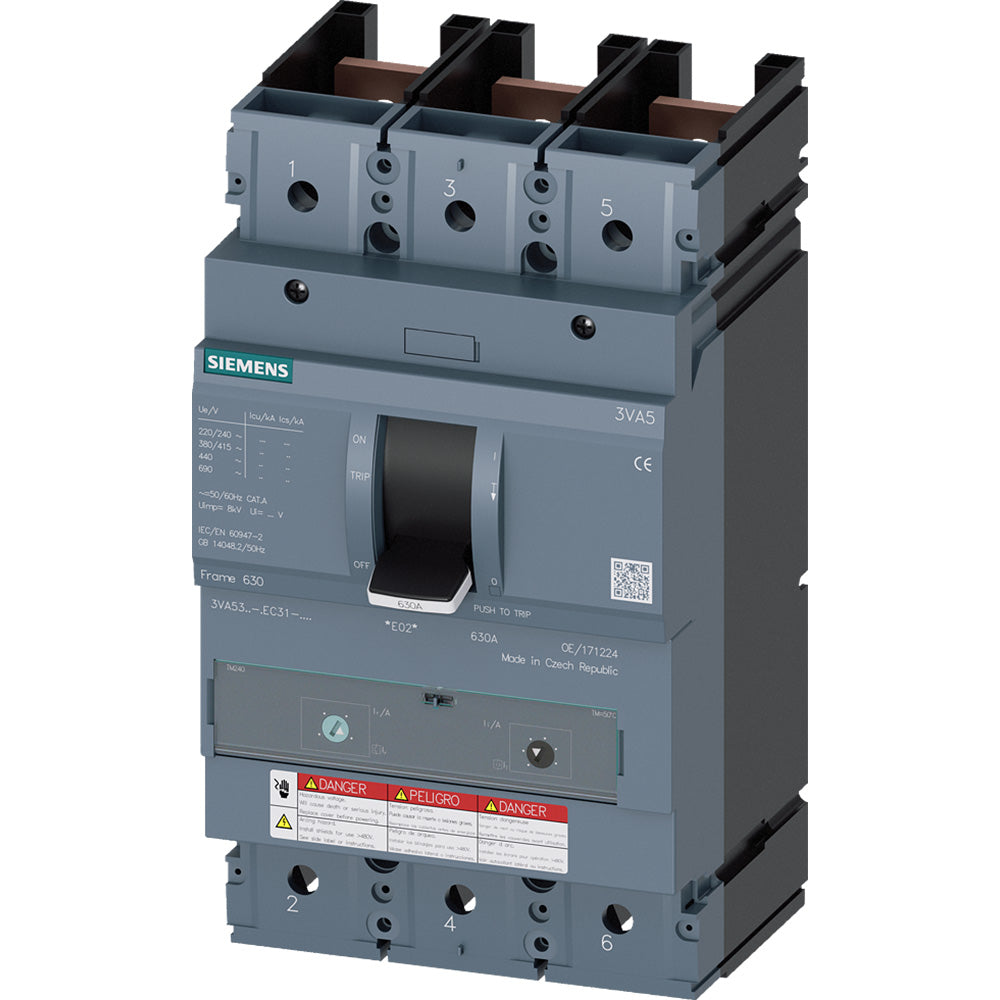

3VA5330-5EC31-0AA0 is a Siemens 3VA5 molded case circuit breaker with thermal magnetic trip unit, rated at 300A for 3-pole line protection.This Siemens Sentron 3VA5330-5EC31-0AA0 features a 3VA53 frame, TM230 trip unit with fixed Ir and adjustable Ii, class M breaking capacity, and supports bolt-on mounting. It provides long time and instantaneous trip functions, suitable for reverse feed applications with load side lug terminals.
- Manufacturer: Siemens
- Part Number: 3VA5330-5EC31-0AA0
- Amperage: 300A
- Poles: 3
- Frame: 3VA53
- Trip Unit: TM230, thermal magnetic (FTAM)
- Interrupt Rating: 35kA at 480V, 18kA at 600V, 85kA at 240V
- Voltage: 600VAC, 500VDC
- Frequency: 50/60 Hz
- Protection: Line protection, overload Ir=300A
- Breaking Capacity: Class M
- Approvals: UL
Specifications
- Part Number: 3VA5330-5EC31-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : TM230
Product Data
- UPC : 804766793363
- GTIN : 804766793363
- Weight : 20 lb
- Standards : UL Listed
- Certification : UL Listed
