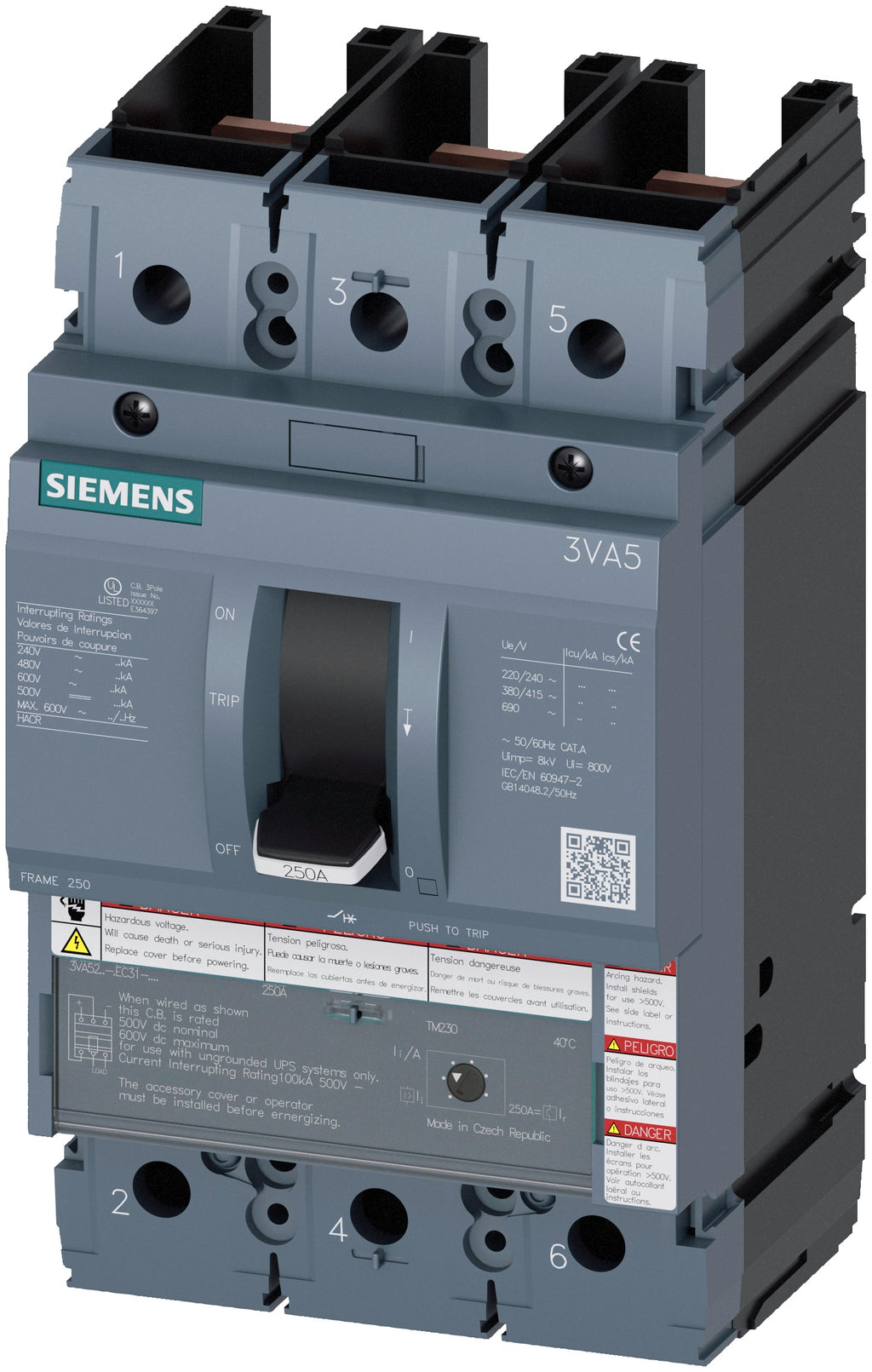

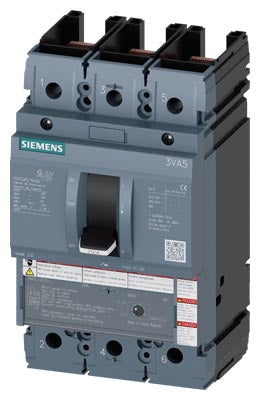

3VA5225-5EC31-0AA0 - Siemens 250A 600V 3-Pole Molded Case Circuit Breaker 3VA5 Frame TM230 Trip Unit

3VA5225-5EC31-0AA0

3VA5225-5EC31-0AA0 is a Siemens 3VA5 molded case circuit breaker rated at 250A with thermal magnetic trip protection for reliable circuit protection in AC/DC applications.This 3-pole circuit breaker from the 3VA5 series features a frame size of 250, fixed thermal magnetic trip unit (TM230, FTAM) with overload protection Ir=250A and short-circuit protection Ii=5...10 x In. It offers a breaking capacity class M of 35kA at 480V, 18kA at 600V, and supports operating voltages up to 690V AC/750V DC. Designed for fixed mounting with feed-thru connections, it ensures compact installation and modular accessory compatibility.Key Specifications

• Part Number: 3VA5225-5EC31-0AA0
• Manufacturer: Siemens
• Amperage Rating: 250A
• Number of Poles: 3
• Frame Size: 3VA5 UL Frame 250
• Voltage Rating: 690V AC / 750V DC
• Interrupt Rating: 35kA @ 480V, 18kA @ 600V
• Trip Unit: Thermal Magnetic (TM230, FTAM)
• Overload Protection: Ir=250A fixed
• Short-Circuit Protection: Ii=5...10 x In
• Mounting Type: Fixed / DIN Rail
• Connection Type: Feed-Thru (without connection)
• Frequency: 50/60 Hz
• Enclosure Type: IP40

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3VA5225-5EC31-0AA0
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : 3VA
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 80476630820
• GTIN : 00804766308208
• Weight : 2 lb
• Standards : UL Listed
• Certification : UL Listed
