Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA5222-6ED31-0AA0

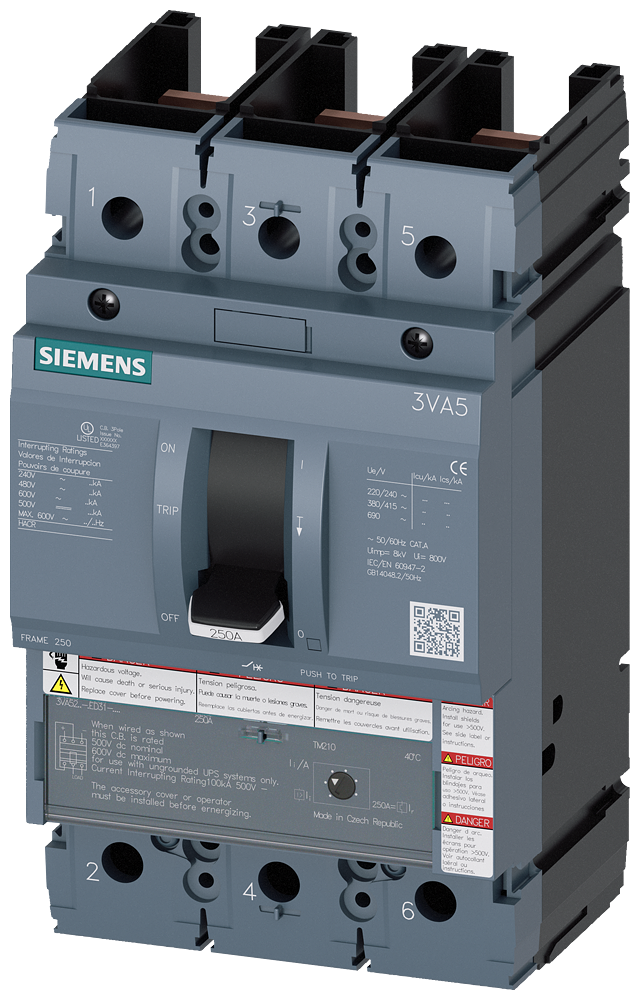

3VA5222-6ED31-0AA0 is a Siemens 3VA5 molded case circuit breaker rated at 225A, 3-pole, with thermal-magnetic trip unit.This UL frame 250 circuit breaker features TM210 fixed thermal fixed magnetic (FTFM) protection, line protection LI functions, and feed-thru connections. It offers breaking capacity class H with 65kA at 480V per UL 489, suitable for industrial and commercial applications up to 690V AC.
- Series: 3VA5
- Frame: 250A
- Amperage: 225A
- Voltage: 600V AC (UL), 690V AC max
- Poles: 3
- Trip Unit: TM210 FTFM, LI
- Interrupt Rating: 65kA@480V (UL)
- Connection: Feed-Thru
- Certifications: UL, IEC
- Protection: Thermal-Magnetic
Specifications
- Part Number: 3VA5222-6ED31-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 600
- Amperage : 225
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : LI - Long Time and Instantaneous
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 80476630822
- GTIN : 00804766308222
- Weight : 2 lb
- Standards : UL Listed
- Certification : UL Listed
