Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA5217-6EC31-0AA0

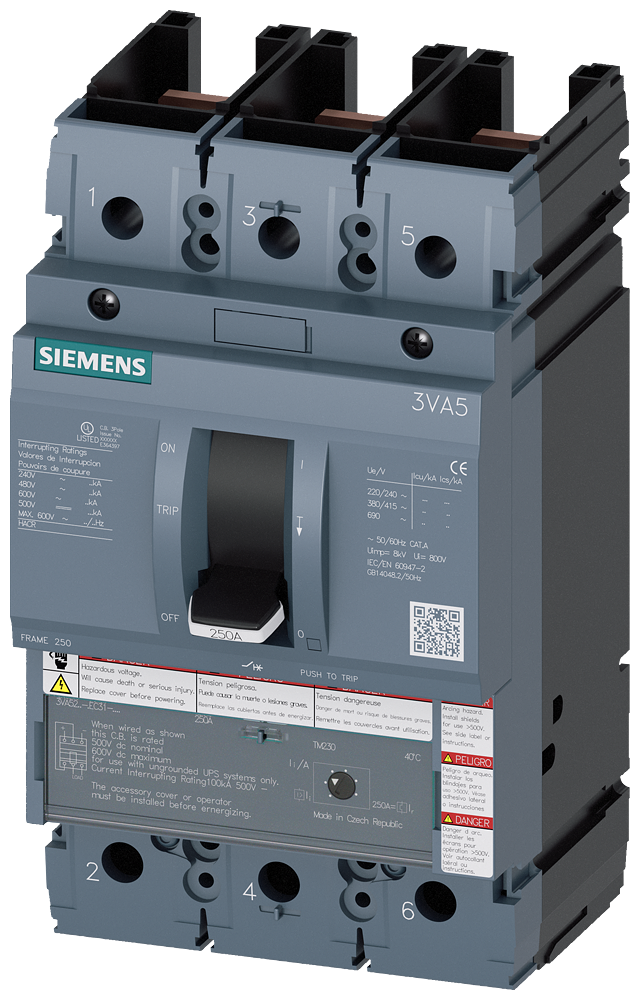

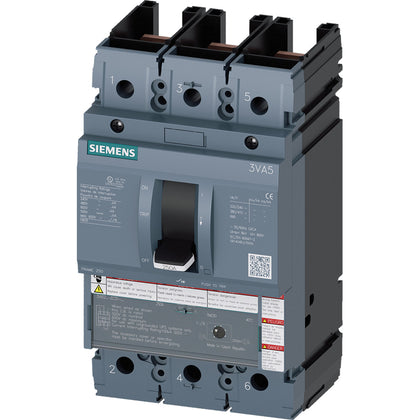

3VA5217-6EC31-0AA0 is a Siemens 3-pole thermal magnetic molded case circuit breaker rated for 175 amps and 600 volts.This Siemens 3VA52 frame circuit breaker features a 25kA interrupting rating at 600V and 65kA at 480V, with long time and instantaneous trip functions. It mounts on a DIN rail and provides reliable line protection with UL certification.
- Manufacturer: Siemens
- Series/Frame: 3VA52
- Amperage: 175A
- Voltage Rating: 600V
- Poles: 3
- Mounting Type: DIN Rail
- Interrupting Rating: 25kA at 600V, 65kA at 480V
- Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
- Connection Type: Feed-Thru
- Certifications: UL Listed
Specifications
- Part Number: 3VA5217-6EC31-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 600
- Amperage : 175
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 80476631246
- GTIN : 00804766312465
- Weight : 2 lb
- Standards : UL Listed
- Certification : UL Listed
