Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description

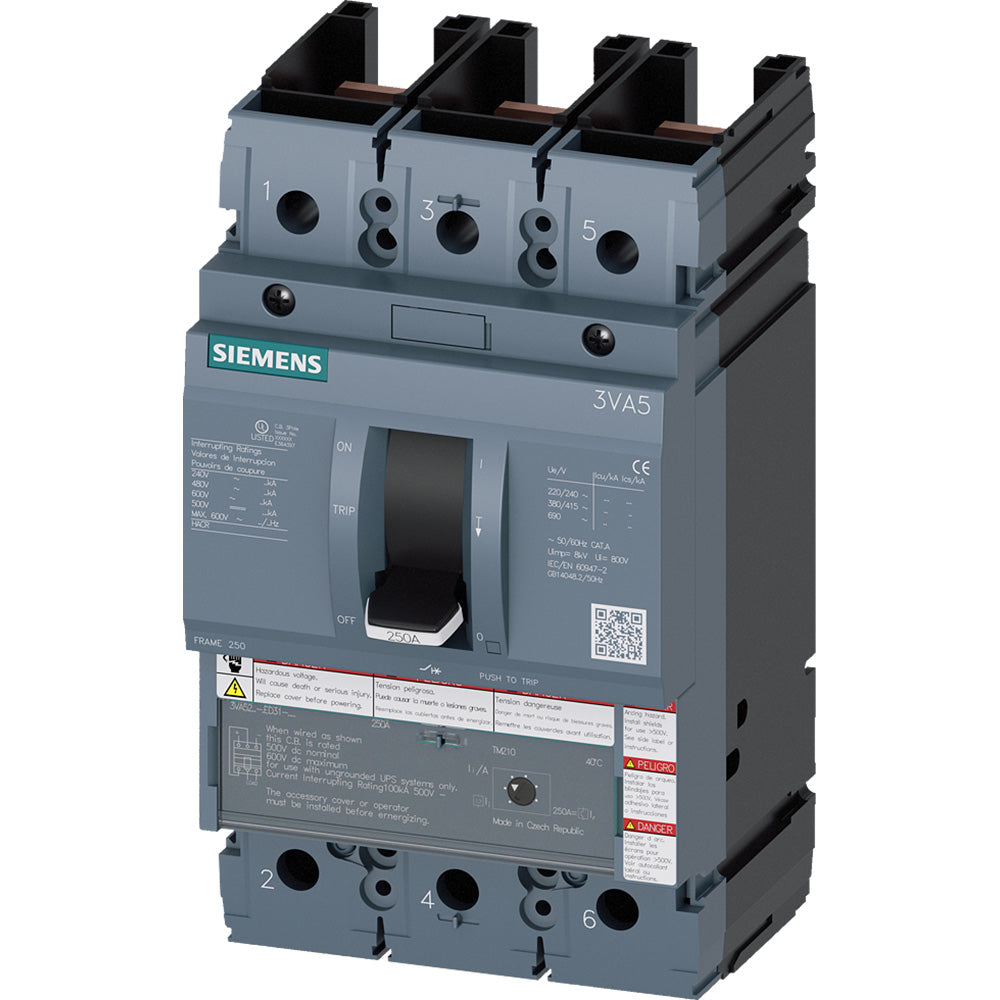

3VA5215-7ED31-0AA0
3VA5215-7ED31-0AA0 is a Siemens 3-pole thermal magnetic molded case circuit breaker rated for 150 Amps and 600 Volts AC, designed for reliable overcurrent protection.This circuit breaker features a 3VA5 series frame with a 100kA interrupting rating at 480V, suitable for industrial and commercial applications. It includes long time and instantaneous (LI) trip functions, feed-thru connection type, and is UL and IEC certified. The breaker is designed for DIN rail mounting and provides robust protection with a thermal magnetic trip unit.
- Amperage: 150A
- Voltage Rating: 600V AC (up to 690V AC)
- Poles: 3
- Series/Frame: 3VA5 UL Frame 250
- Interrupting Rating: 100kA @ 480V
- Trip Unit: Thermal Magnetic with Long Time and Instantaneous functions
- Mounting Type: DIN Rail
- Connection Type: Feed-Thru
- Certifications: UL, IEC
- Phase: 3
Specifications
- Part Number: 3VA5215-7ED31-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 600
- Amperage : 150
- Phase : 3
- Poles : 3
- AIC rating : 100kA@480V
- Connection : Feed-Thru
- Functions : LI - Long Time and Instantaneous
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 80476631805
- GTIN : 00804766318054
- Weight : 2
- Standards : UL Listed
- Certification : UL Listed
