Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA5215-6EC31-0AA0

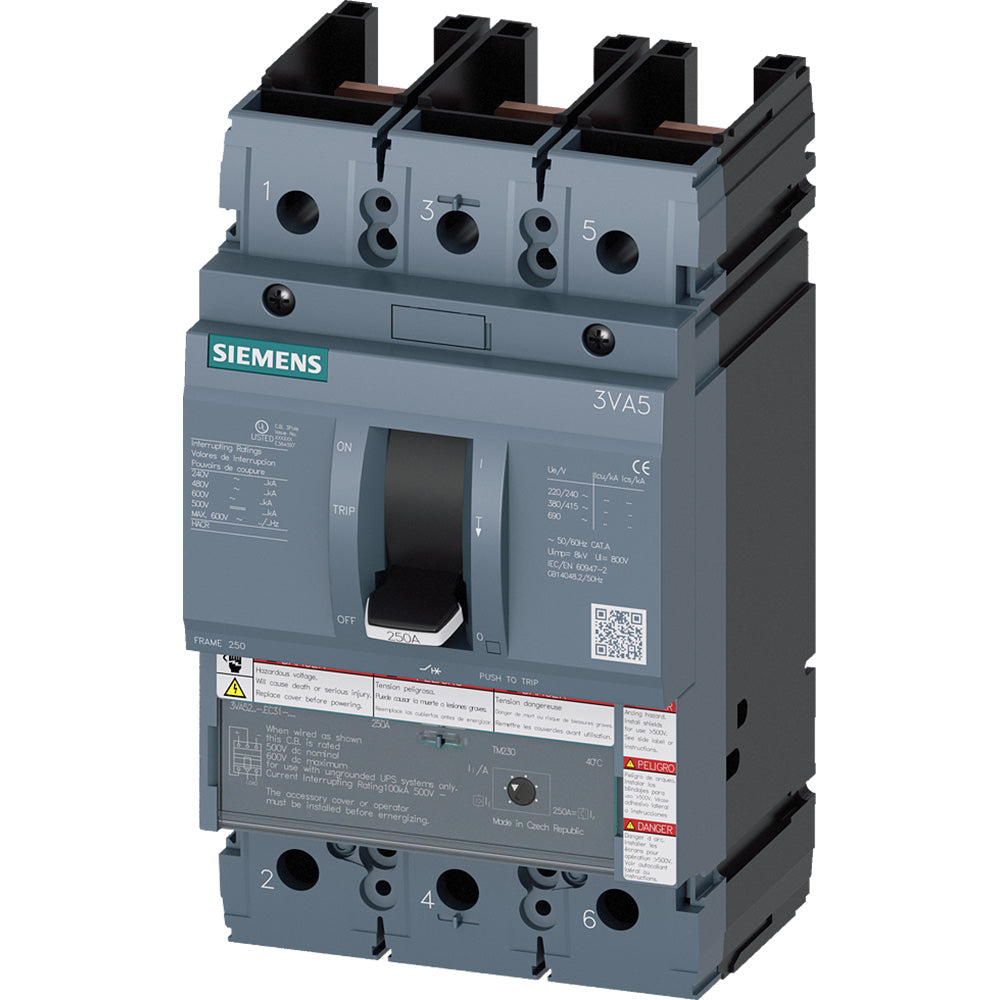

3VA5215-6EC31-0AA0 is a Siemens 3VA5 molded case circuit breaker with 3 poles, 150A rating, and thermal magnetic trip.This UL-listed circuit breaker from the 3VA5 series features frame size 250, line protection with TM230 fixed thermal adjustable magnetic (FTAM) trip, and breaking capacity class H at 65kA @ 480V. It supports operational voltages up to 690V AC / 750V DC, with DIN-rail mounting and feed-thru connections for reliable circuit protection in industrial applications.Key Specifications
- Part Number: 3VA5215-6EC31-0AA0
- Manufacturer: Siemens
- Series/Frame: 3VA5 / 3VA52 / Frame 250
- Amperage: 150A
- Voltage: 690V AC / 750V DC
- Poles: 3
- Trip Unit: Thermal Magnetic (TM230, FTAM)
- Interrupt Rating: 65kA @ 480V (Class H)
- Mounting Type: DIN-Rail
- Connection Type: Feed-Thru (without connection)
- Certifications: UL
Specifications
- Part Number: 3VA5215-6EC31-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 600
- Amperage : 150
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 80476630848
- GTIN : 00804766308482
- Weight : 2
- Standards : UL Listed
- Certification : UL Listed
