2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description

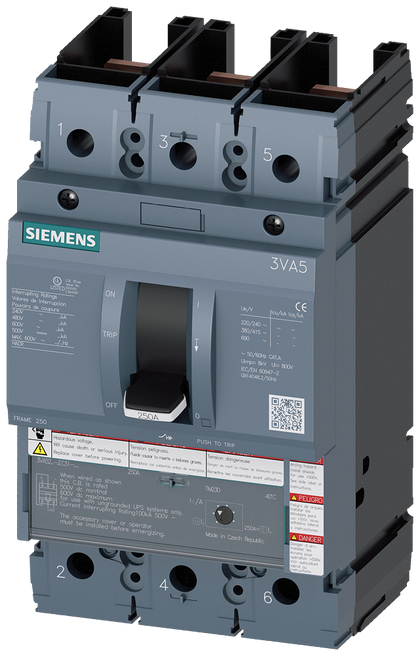

3VA5215-5EC31-0AA0
3VA5215-5EC31-0AA0 is a Siemens 3VA5 molded case circuit breaker with thermal-magnetic trip for reliable circuit protection in AC/DC applications.This 3-pole breaker features fixed thermal-magnetic trip (FTAM, TM230), line protection, compact design, and modular accessories. It offers 35 kA interrupting capacity at 480 V, with rated insulation voltage of 800 V and operational voltage up to 690 VAC/750 VDC. Fixed mounting with IP40 enclosure and temperature range -25 to 70 deg C.
- Part Number: 3VA5215-5EC31-0AA0
- Manufacturer: Siemens
- Series/Frame: 3VA5 UL frame 250
- Number of Poles: 3
- Continuous Current Rating: 150 A
- Interrupt Rating: 35 kA @ 480 V
- Trip Unit: Thermal-Magnetic (FTAM, TM230)
- Rated Insulation Voltage: 800 V
- Operational Voltage: 690 VAC / 750 VDC
- Frequency: 50/60 Hz
- Mounting Type: Fixed
- Enclosure Type: IP40
Specifications
- Part Number: 3VA5215-5EC31-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 600
- Amperage : 150
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : LI - Long Time and Instantaneous
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 80476630852
- GTIN : 00804766308529
- Weight : 2
- Standards : UL Listed
- Certification : UL Listed
