2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA5195-6ED31-0AA0

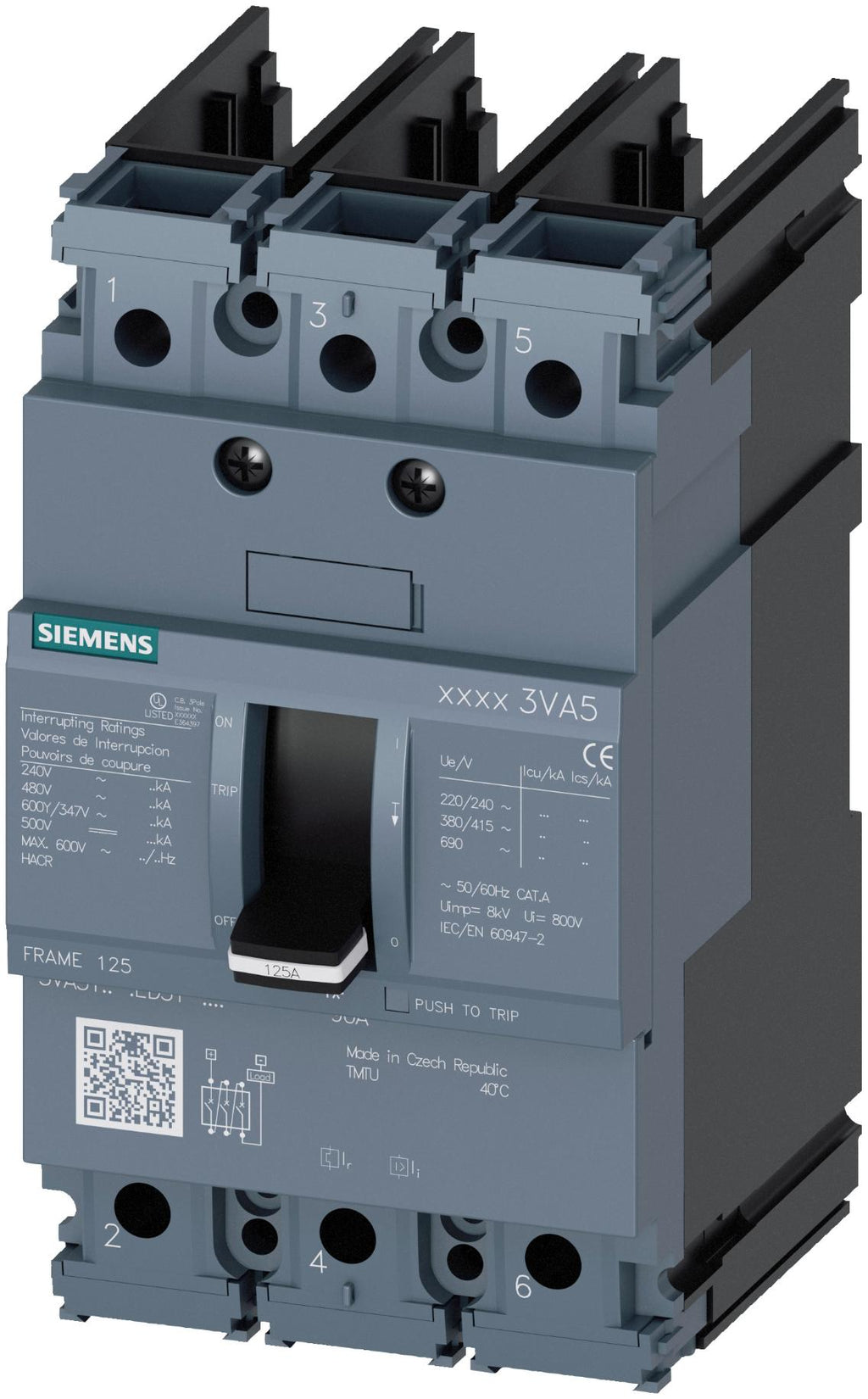

3VA5195-6ED31-0AA0 is a Siemens 3VA5 molded case circuit breaker with thermal magnetic trip protection, rated at 15A for line protection.This 3-pole circuit breaker features TM210 trip unit with fixed thermal magnetic protection (FTFM), LI functions (long time and instantaneous), feed-thru connections, and UL frame 125 construction. It offers breaking capacity class H with 65kA at 480V per UL standards and supports operational currents up to 15A at 40-45C.
- Part Number: 3VA5195-6ED31-0AA0
- Manufacturer: Siemens
- Series/Frame: 3VA5 UL Frame 125
- Amperage: 15A
- Voltage: 600V AC / 500V DC rated operational
- Poles: 3
- Trip Unit: TM210 thermal magnetic, FTFM, LI
- Interrupt Rating: 65kA @ 480V (UL)
- Connection Type: Feed-thru
- Approvals: UL, IEC
Specifications
- Part Number: 3VA5195-6ED31-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 690V AC
- Amperage : 15
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : LI
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Thermal Magnetic
- Trip Type : TM210
Product Data
- UPC : 804766300240
- GTIN : 00804766300240
- Country of Origin : Mexico
- Dimensions : 5.906 x 3.622 x 4.567 inch
- Weight : 2.064 lb
- Standards : UL Listed
- Certification : UL Listed
