Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA5195-5ED31-0AA0

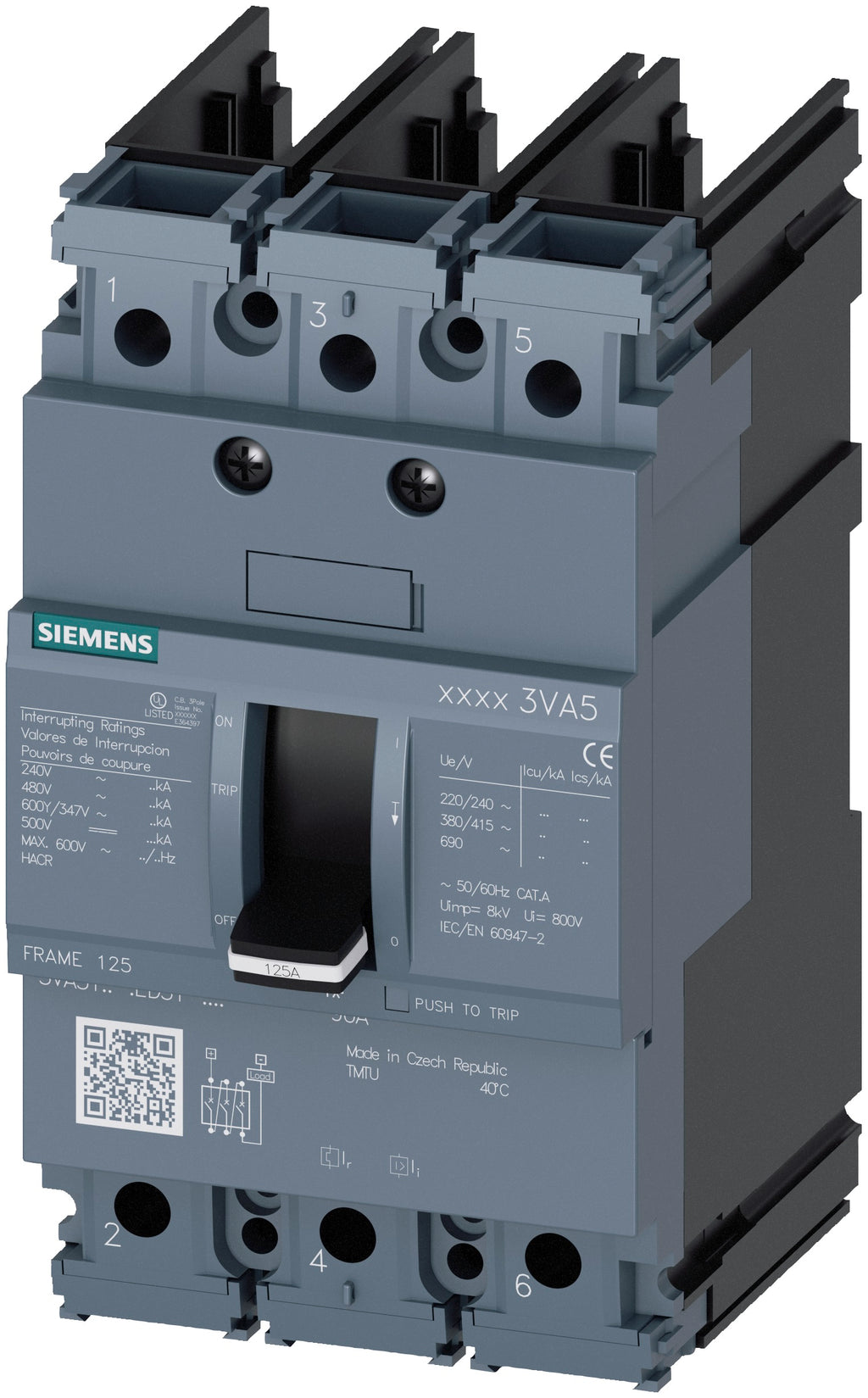

3VA5195-5ED31-0AA0 is a Siemens 3VA5 molded case circuit breaker rated at 15A, 600V, 3-pole with thermal magnetic trip.
This UL frame 125 breaker features line protection TM210, feed-thru connections (FTFM), breaking capacity class M at 35kA@480V, LI functions (long time and instantaneous), and overload protection Ir=15A with short-circuit protection Ii=20xIn. It supports operational currents up to 15A at 40C and rated insulation voltage of 800V.
Key Specifications
- Manufacturer: Siemens
- Series/Frame: 3VA5 UL Frame 125
- Amperage: 15A
- Voltage: 600V AC / 690V operational
- Poles: 3
- Interrupt Rating: 35kA@480V (UL)
- Trip Unit: Thermal Magnetic TM210
- Functions: LI (Long Time, Instantaneous)
- Connection: Feed-Thru (FTFM)
- Approvals: UL, IEC
- Insulation Voltage: 800V
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 3VA5195-5ED31-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 690V AC
- Amperage : 15
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : LI
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Thermal Magnetic
- Trip Type : TM210
Product Data
- UPC : 804766300264
- GTIN : 00804766300264
- Country of Origin : Mexico
- Dimensions : 5.906 x 3.622 x 4.567 inch
- Weight : 2.079
- Standards : UL Listed
- Certification : UL Listed
