Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA5170-6ED31-0AA0

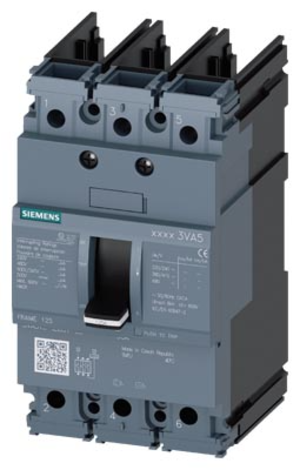

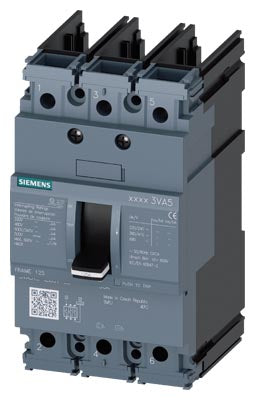

3VA5170-6ED31-0AA0 is a Siemens 3VA5 molded case circuit breaker with 3 poles, 70A rating, and thermal magnetic trip protection.This Siemens 3VA5 series circuit breaker features line protection with TM210 trip unit, FTFM connection, fixed long-time and instantaneous functions, and 65kA interrupting rating at 480V. It supports up to 690V AC operation in a compact UL frame 125 design for reliable circuit protection in AC/DC applications.
- Part Number: 3VA5170-6ED31-0AA0
- Manufacturer: Siemens
- Series/Frame: 3VA5 UL Frame 125
- Amperage: 70A
- Voltage: 600V/690V AC
- Poles: 3
- Trip Unit: Thermal Magnetic TM210
- Functions: LI (Long Time, Instantaneous)
- Interrupt Rating: 65kA @ 480V
- Connection: Feed-Thru FTFM
- Approvals: UL, IEC
Specifications
- Part Number: 3VA5170-6ED31-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 690V AC
- Amperage : 70
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : LI
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Thermal Magnetic
- Trip Type : TM210
Product Data
- UPC : 804766300783
- GTIN : 0804766300783
- Country of Origin : Mexico
- Dimensions : 5.906 x 3.622 x 4.567 inch
- Weight : 1.933
- Standards : UL Listed
- Certification : UL Listed
