Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA5160-6ED31-0AA0

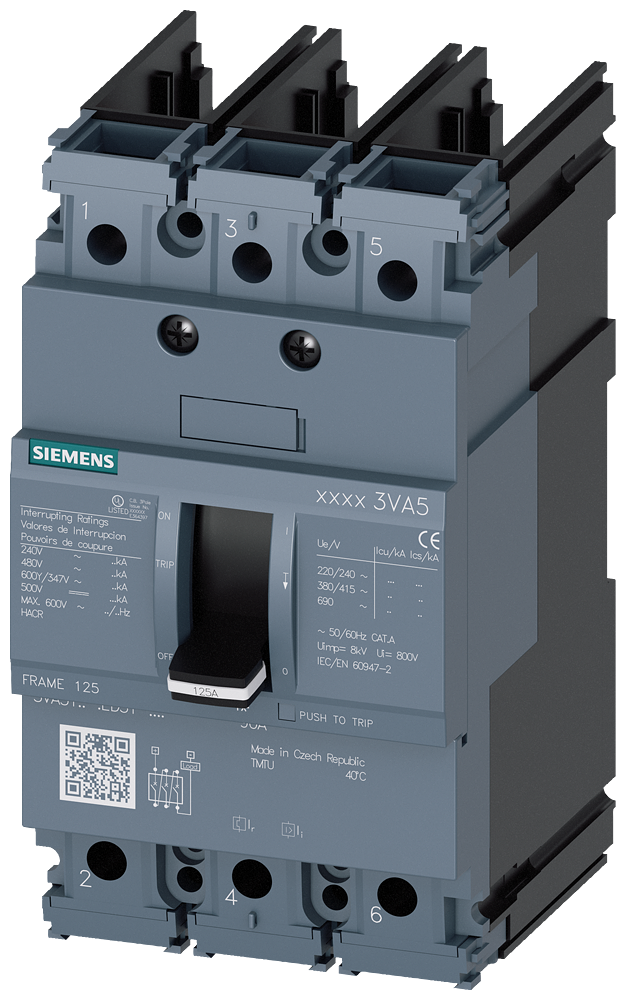

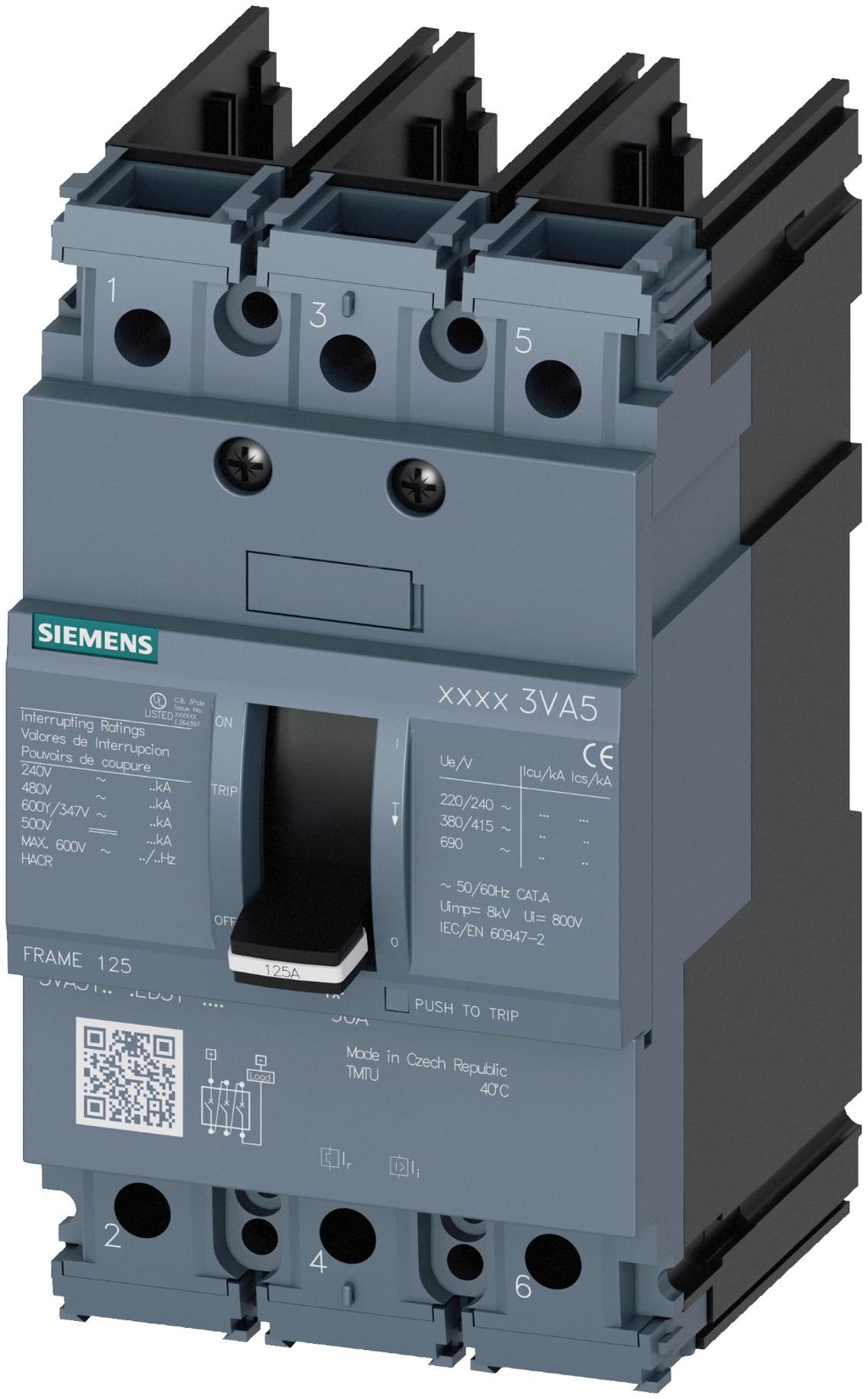

3VA5160-6ED31-0AA0 is a Siemens 3-pole molded case circuit breaker rated for 60 amps and 600 volts with a 65kA interrupting capacity.This Siemens 3VA5 frame circuit breaker features thermal magnetic trip protection with long time and instantaneous functions (TM210). It supports feed-thru connection and is UL and IEC certified. The breaker is designed for industrial and commercial power distribution with a high breaking capacity class H rating at 480V.
- Manufacturer: Siemens
- Series/Frame: 3VA5 UL Frame 125
- Amperage: 60 A
- Voltage Rating: 600 V
- Poles: 3
- Interrupting Rating: 65 kA @ 480 V
- Trip Unit: Thermal Magnetic (TM210) with Long Time and Instantaneous functions
- Connection Type: Feed-Thru
- Certifications: UL, IEC
- Breaking Capacity Class: H
Specifications
- Part Number: 3VA5160-6ED31-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 690V AC
- Amperage : 60
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : LI
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Thermal Magnetic
- Trip Type : TM210
Product Data
- UPC : 804766300721
- GTIN : 00804766300721
- Country of Origin : Mexico
- Dimensions : 5.906 x 3.622 x 4.567 inch
- Weight : 2.05
- Standards : UL Listed
- Certification : UL Listed
