Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA5160-5ED31-0AA0

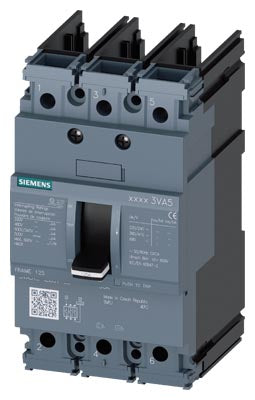

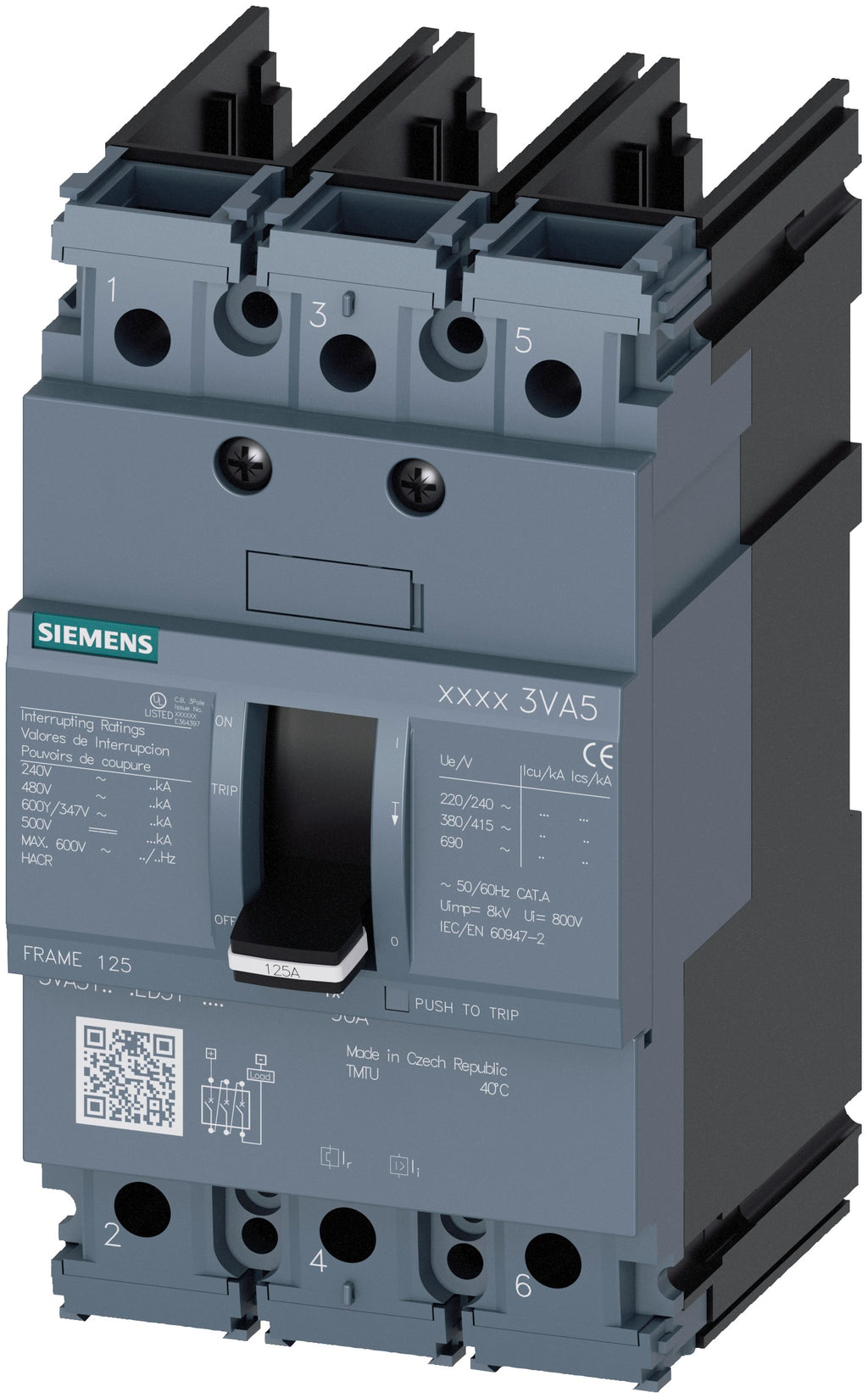

3VA5160-5ED31-0AA0 is a Siemens 3-pole molded case circuit breaker rated for 60 amps and 600 volts with a 35kA interrupting capacity.This Siemens 3VA5 series breaker features thermal magnetic protection with long-time and instantaneous trip functions (LI), a feed-thru connection type, and UL and IEC certifications. It has a breaking capacity of 35kA at 480V and is designed for line protection with a TM210 trip unit. The breaker is suitable for 3-phase systems and provides reliable overload and short-circuit protection.
- Key Specifications
- Amperage: 60 A
- Voltage Rating: 600 V AC
- Poles: 3
- Interrupting Rating: 35 kA @ 480 V
- Series/Frame: 3VA5 UL Frame 125
- Trip Unit: Thermal Magnetic (LI - Long Time and Instantaneous)
- Connection Type: Feed-Thru
- Certifications: UL, IEC
- Phase: 3
- Protection Type: Thermal Magnetic
Specifications
- Part Number: 3VA5160-5ED31-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 690V AC
- Amperage : 60
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : LI
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Thermal Magnetic
- Trip Type : TM210
Product Data
- UPC : 804766300745
- GTIN : 00804766300745
- Country of Origin : Mexico
- Dimensions : 5.906 x 3.622 x 4.567 inch
- Weight : 2.072
- Standards : UL Listed
- Certification : UL Listed
