3VA5140-1MH31-0AA0 - Siemens 3VA5 UL Frame 125 3 Pole Motor Circuit Protector 40A 690V

3VA5140-1MH31-0AA0

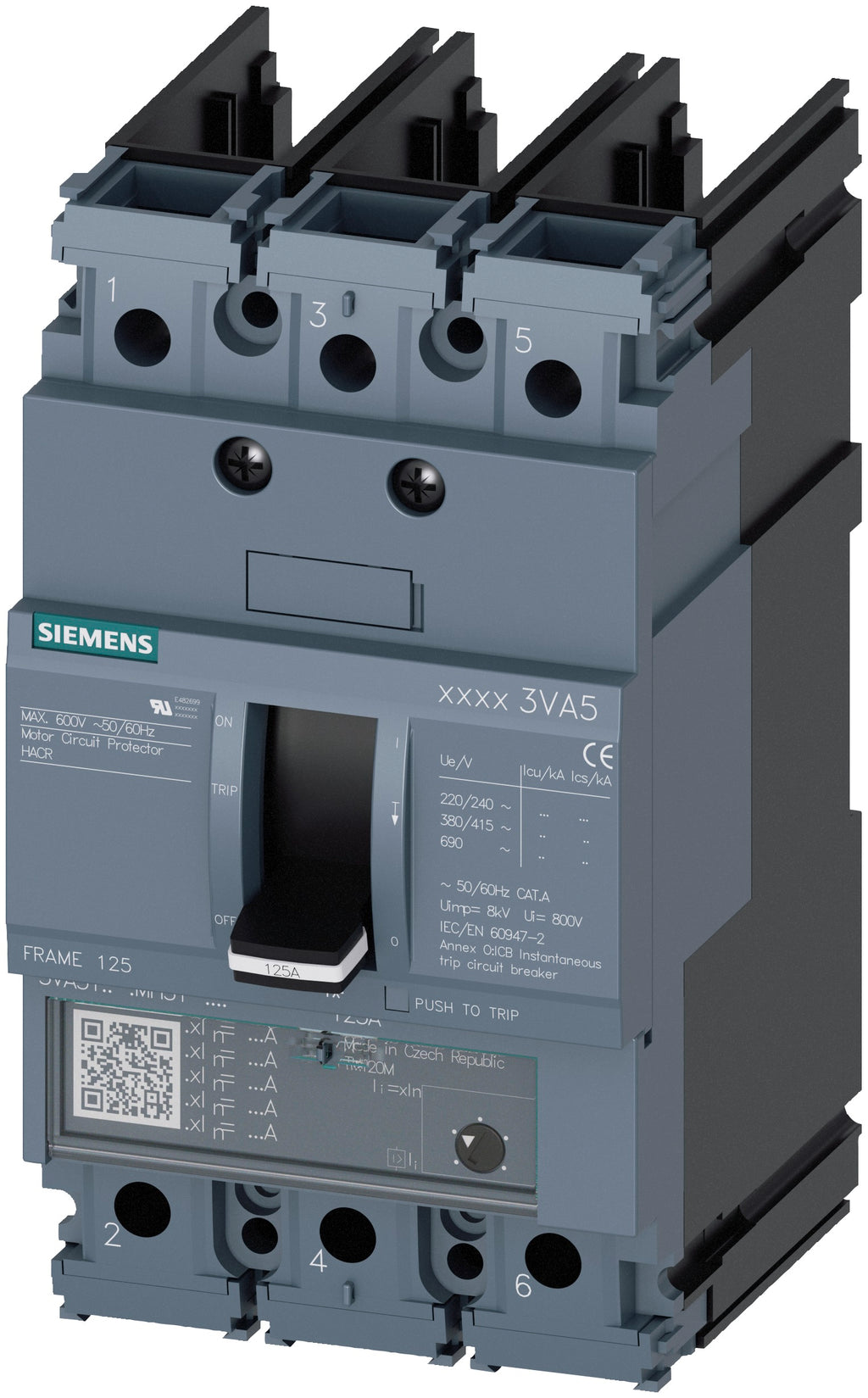

3VA5140-1MH31-0AA0 is a Siemens 3VA5 UL Frame 125 motor circuit protector with thermal-magnetic trip protection, rated for 40A at 690V AC in a 3-pole configuration.

This bolt-on circuit breaker features a TM120M trip unit with long time and instantaneous trip functions, adjustable response current from 200A to 480A, and is suitable for reverse fed applications. The breaker provides 65kAIC short-circuit protection at 480V and includes load side lug terminals for secure connections. Non-interchangeable trip design ensures proper application-specific protection in residential, commercial, and industrial installations.

• Amperage: 40A
• Voltage Rating: 690V AC
• Poles: 3-Pole
• Frame Size: UL Frame 125
• Mounting Type: Bolt-On
• Trip Unit: TM120M Thermal-Magnetic
• Interrupt Rating: 65kAIC @ 480V
• Short-Circuit Current Breaking Capacity: 150kA @ 240V, 70kA @ 415V, 10kA @ 690V
• Adjustable Response Current: 200A - 480A
• Mechanical Service Life: 15,000 switching cycles
• Certifications: UL
• Terminal Type: Load Side Lug Terminals

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3VA5140-1MH31-0AA0
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : 3VA
• Voltage : 690V AC
• Amperage : 40
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : I
• Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
• Protection : Magnetic Only
• Trip Type : TM120M

Product Data

• UPC : 804766301193
• GTIN : 00804766301193
• Country of Origin : Mexico
• Dimensions : 5.906 x 3.622 x 4.567 inch
• Weight : 2.057
• Standards : UL Listed
• Certification : UL Listed
