Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA5130-5EC31-0AA0

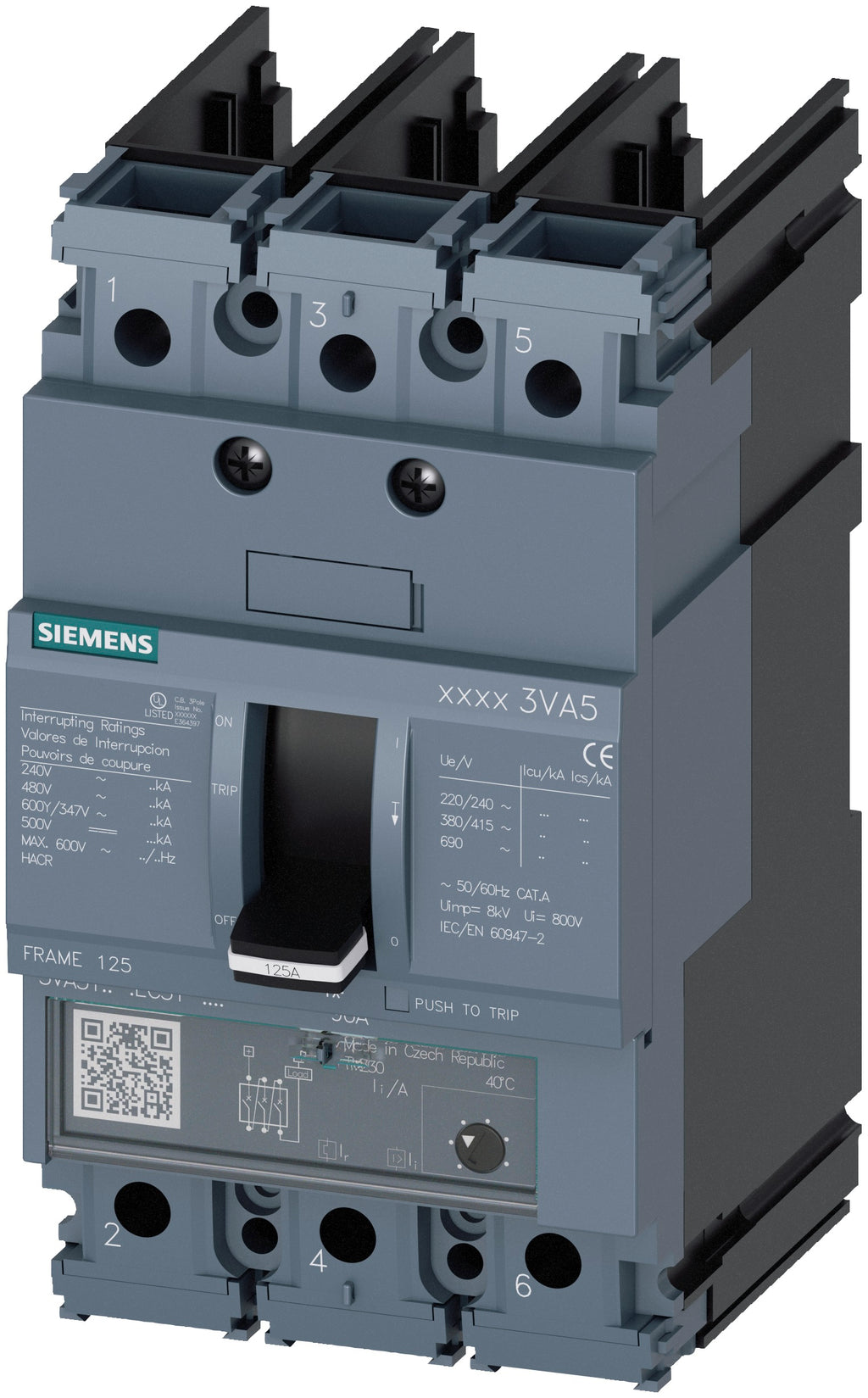

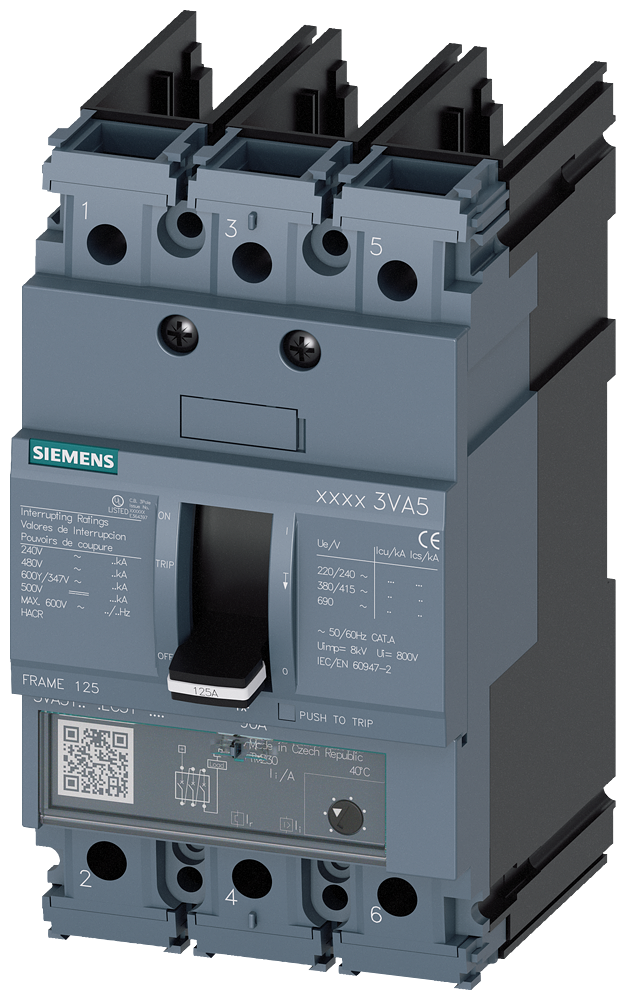

3VA5130-5EC31-0AA0 is a Siemens 3-pole thermal magnetic molded case circuit breaker rated for 30 amps and 600 volts. It features a 35kA interrupting rating at 480V and is part of the 3VA5 series.This circuit breaker includes long time and instantaneous (LI) trip functions for reliable overload and short circuit protection. It has a feed-thru connection type and is UL and IEC certified. The breaker is designed for line protection with a frame size of 125 and mounting type DIN rail.
- Manufacturer: Siemens
- Series: 3VA5
- Amperage: 30 Amps
- Voltage Rating: 600V AC
- Poles: 3
- Interrupting Rating: 35kA @ 480V
- Trip Unit: Thermal Magnetic with LI functions
- Connection Type: Feed-Thru
- Mounting Type: DIN Rail
- Certifications: UL, IEC
- Frame Size: 125
Specifications
- Part Number: 3VA5130-5EC31-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 690V AC
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : LI
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Thermal Magnetic
- Trip Type : TM230
Product Data
- UPC : 804766300455
- GTIN : 00804766300455
- Country of Origin : Mexico
- Dimensions : 5.906 x 3.622 x 4.567 inch
- Weight : 2.094
- Standards : UL Listed
- Certification : UL Listed
