Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description

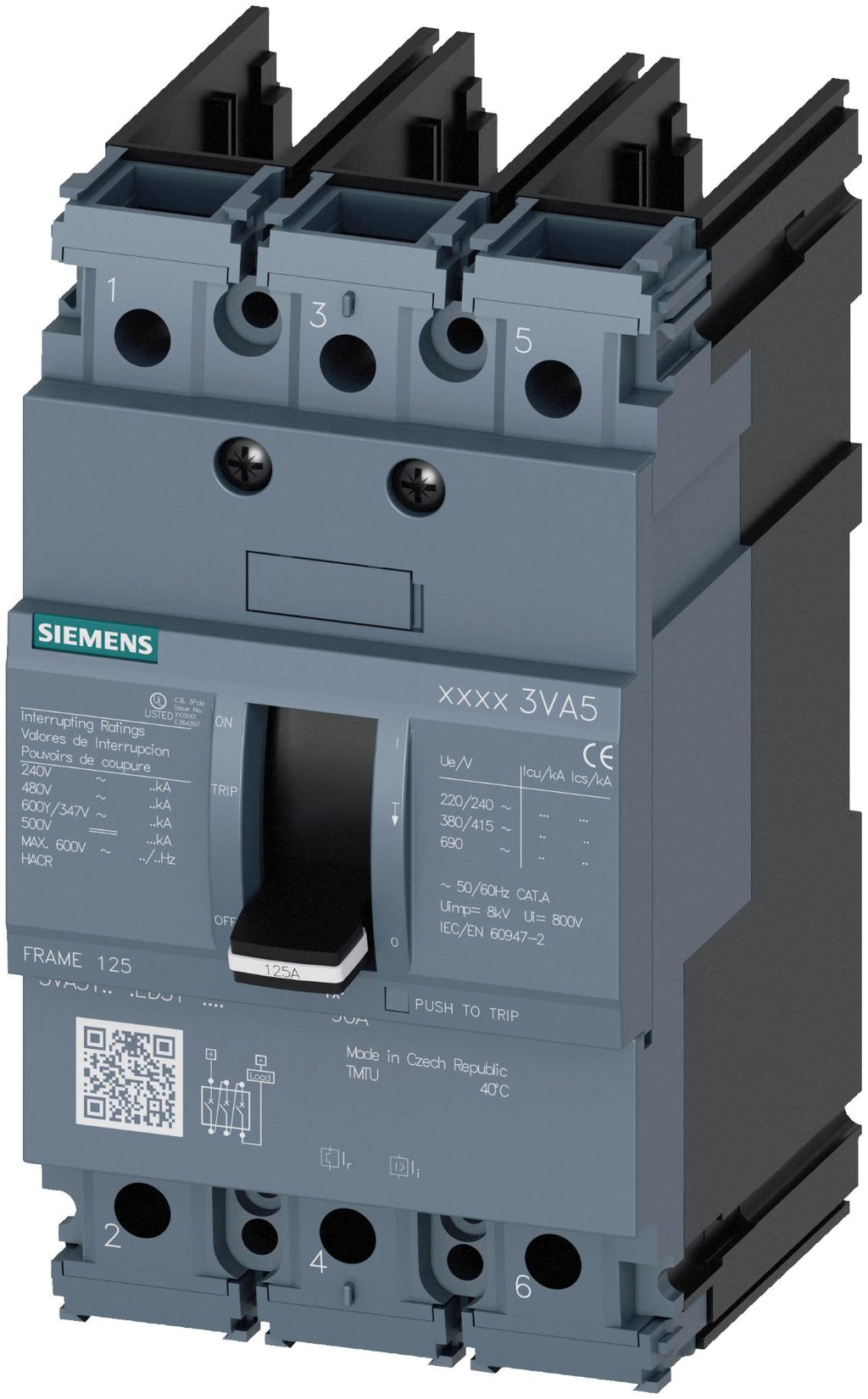

3VA5120-6ED31-0AA0
3VA5120-6ED31-0AA0 is a Siemens 3-pole molded case circuit breaker with a 20 ampere rating and 600 volt AC voltage rating designed for reliable circuit protection.This Siemens 3VA5 series breaker features a thermal magnetic trip unit (TM210) with long time and instantaneous functions, a high interrupting rating of 65kA at 480V, and a feed-thru connection type. It is UL and IEC certified, suitable for 50/60 Hz frequency, and designed for fixed mounting. The breaker offers compact dimensions and robust protection for low voltage applications.
- Key Specifications
- Amperage: 20 A
- Voltage Rating: 600 VAC
- Number of Poles: 3
- Trip Unit Type: Thermal Magnetic (TM210)
- Interrupting Rating: 65 kA @ 480 V
- Connection Type: Feed-Thru
- Series/Frame: 3VA5 UL Frame 125
- Frequency: 50/60 Hz
- Mounting Type: Fixed
- Certifications: UL, IEC
Specifications
- Part Number: 3VA5120-6ED31-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 690V AC
- Amperage : 20
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : LI
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Thermal Magnetic
- Trip Type : TM210
Product Data
- UPC : 804766300301
- Country of Origin : Mexico
- Dimensions : 5.906 x 3.622 x 4.567 inch
- Weight : 2.077
- Standards : UL Listed
- Certification : UL Listed
