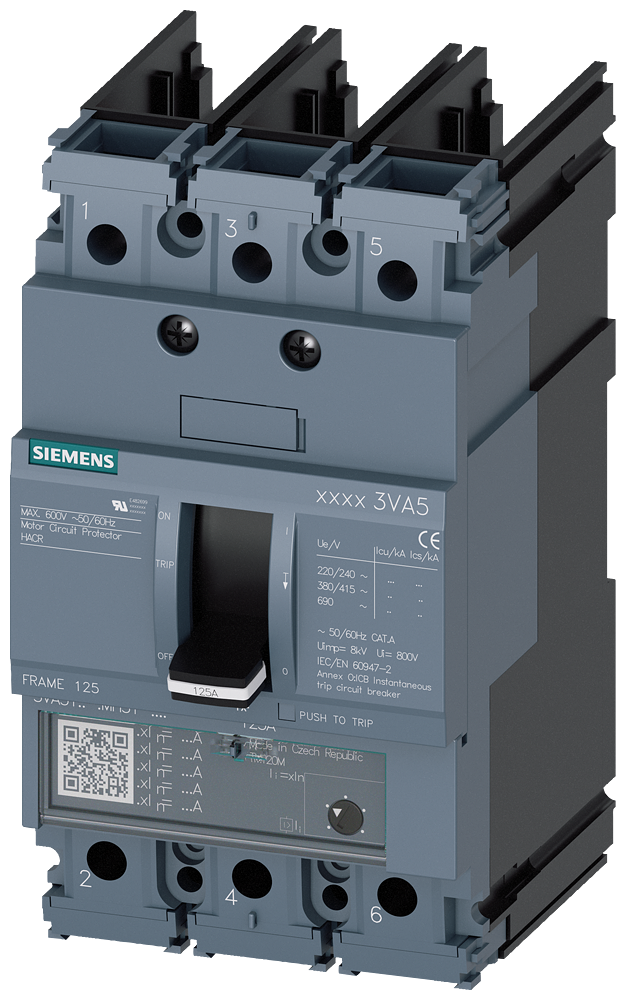

3VA5110-5EC31-0AA0 - Siemens 100A 690V 3-Pole Molded Case Circuit Breaker, 3VA5 Frame, Thermal Magnetic Trip

3VA5110-5EC31-0AA0

3VA5110-5EC31-0AA0 is a Siemens molded case circuit breaker designed for low voltage applications with a 3VA5 UL frame and thermal-magnetic trip unit.This circuit breaker features a 100 ampere current rating, 690 VAC voltage rating, and 3 poles. It has a medium (Class M) breaking capacity of 35 kA at 480 V and is suitable for DIN rail mounting. The breaker provides reliable line protection with thermal-magnetic trip technology and carries UL listing and EAC certification.

• Manufacturer: Siemens
• Part Number: 3VA5110-5EC31-0AA0
• Current Rating: 100 A
• Voltage Rating: 690 VAC / 500 VDC
• Poles: 3
• Frame/Series: 3VA5 UL Frame
• Trip Unit: Thermal-Magnetic (TM230, FTAM)
• Interrupt Rating: 35 kA @ 480 V (Class M)
• Mounting Type: DIN Rail
• Certifications: UL Listed, EAC
• Breaking Capacity Class: Medium (Class M)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3VA5110-5EC31-0AA0
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : 3VA
• Voltage : 690V AC
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI
• Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
• Protection : Thermal Magnetic
• Trip Type : TM230

Product Data

• UPC : 804766300998
• GTIN : 00804766300998
• Country of Origin : Mexico
• Dimensions : 5.906 x 3.622 x 4.567 inch
• Weight : 2.125 lb
• Standards : UL Listed
• Certification : UL Listed
