2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA4195-5ED34-0AA0

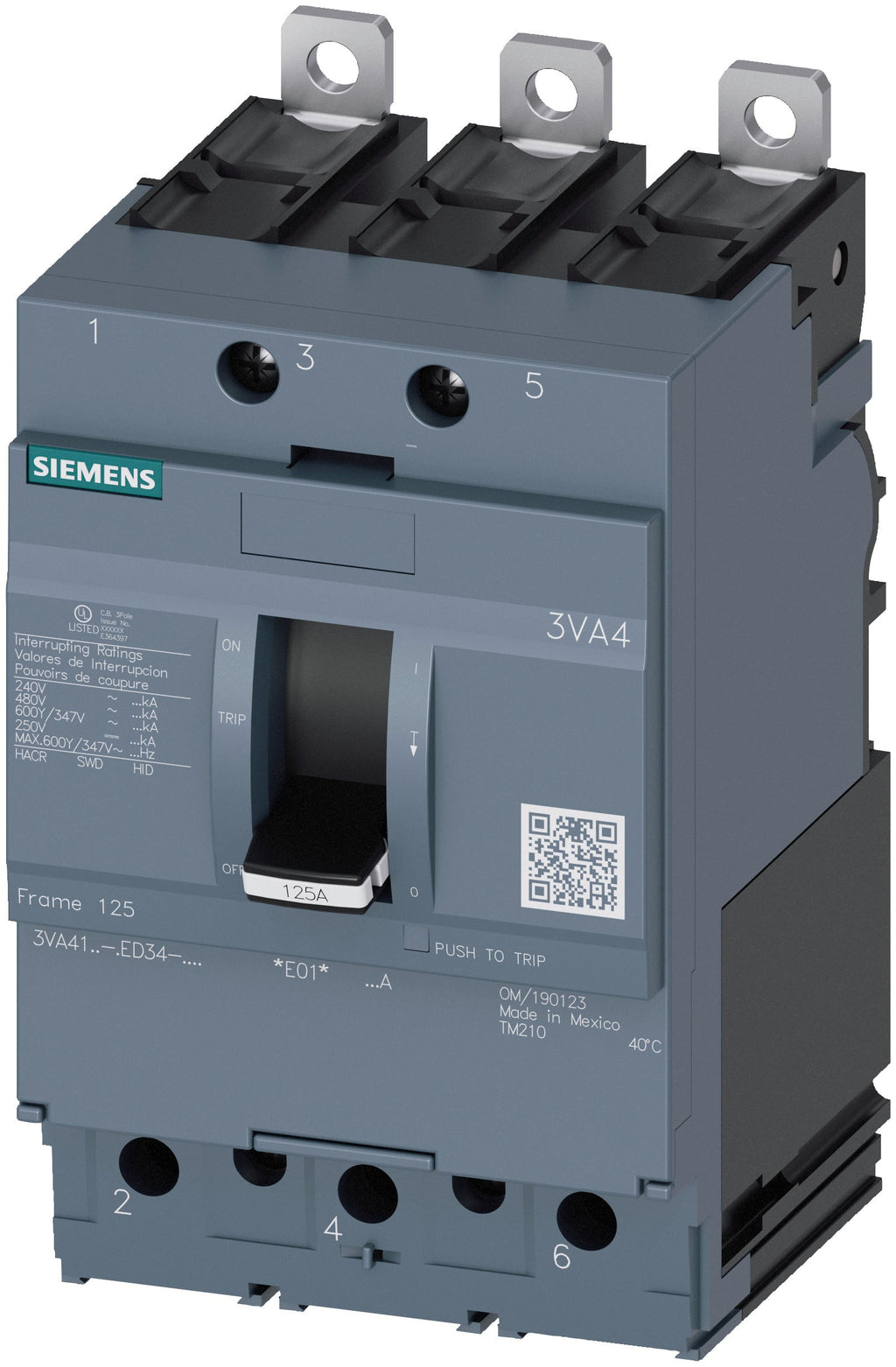

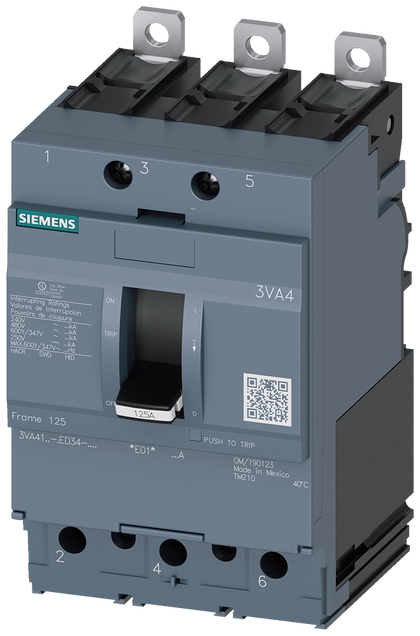

3VA4195-5ED34-0AA0 is a Siemens 3VA41 molded case circuit breaker designed for line protection in low voltage power distribution systems. This thermal magnetic breaker features a 15 amp continuous current rating with a TM210 trip unit providing fixed overload and short-circuit protection. The unit is rated for 600Y/347V and 480V operation with an interrupting capacity of 18 kAIC at 600Y/347V and 35 kAIC at 480V, meeting Class M breaking capacity standards. Key Specifications
- Part Number: 3VA4195-5ED34-0AA0
- Manufacturer: Siemens
- Frame Type: 3VA41 (Frame 125)
- Amperage: 15 A
- Poles: 3
- Voltage: 600Y/347V, 480V
- Trip Unit: TM210 Thermal Magnetic with FTFM
- Interrupt Rating: 18 kAIC at 600Y/347V; 35 kAIC at 480V
- Terminal Connection: Load side lug
- Wire Size: 8 to 3/0 AWG
- Frequency: 50/60 Hz
- Dimensions: 3 in W x 5.5 in H x 3.7 in D
- Certification: UL Listed
Specifications
- Part Number: 3VA4195-5ED34-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 600V AC
- Amperage : 15
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI
- Terminal Connection : Load Side Lug
- Frame Size : 125
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Thermal Magnetic
- Trip Type : TM210
Product Data
- UPC : 804766943522
- GTIN : 00804766943522
- Country of Origin : Mexico
- Dimensions : 6.299 x 5.315 x 3.465 inch
- Weight : 1.638 lb
- Standards : UL Listed
- Certification : UL Listed
