2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA4190-6ED34-0AA0

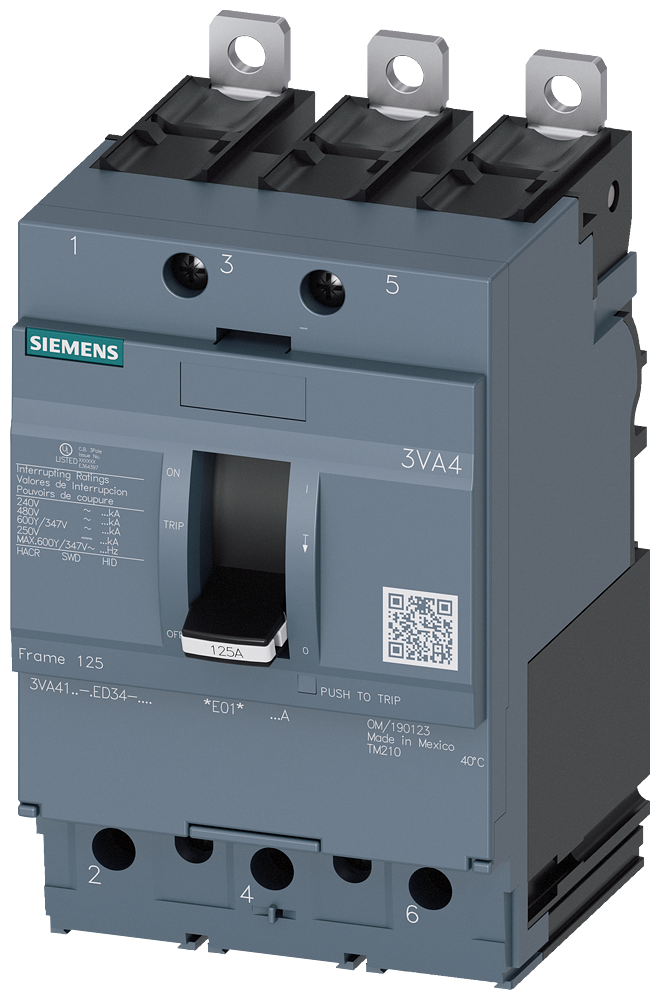

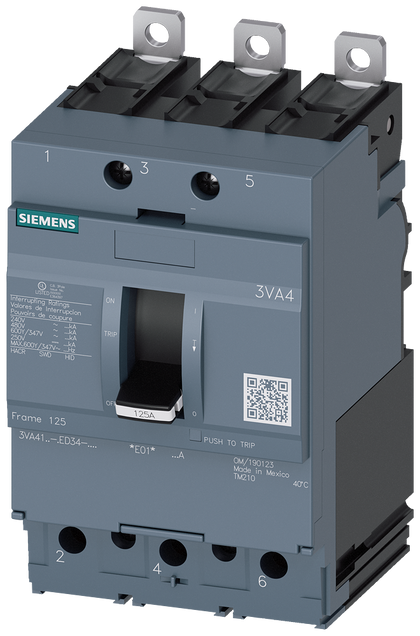

3VA4190-6ED34-0AA0 is a Siemens Sentron 3VA4 molded case circuit breaker with thermal-magnetic trip protection for line applications.This 3-pole circuit breaker features a UL frame 125, TM210 trip unit with fixed thermal overload at 90A and short-circuit protection at 10x In, class H breaking capacity, and line-side protection (LI) configuration. It supports operational voltages up to 600V AC and clamp terminal connections.Key Specifications
- Manufacturer: Siemens
- Part Number: 3VA4190-6ED34-0AA0
- Series/Frame: 3VA4 UL Frame 125
- Poles: 3
- Amperage: 90A
- Voltage: 600V AC
- Trip Unit: TM210 Thermal-Magnetic
- Interrupt Rating: 65kA @ 480V (UL 489)
- Breaking Capacity Class: H
- Protection: LI (Line)
- Overload Protection: Ir=90A fixed
- Short-Circuit Protection: Ii=10x In fixed
Specifications
- Part Number: 3VA4190-6ED34-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 600V AC
- Amperage : 125
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LI
- Terminal Connection : Load Side Lug
- Frame Size : 125
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : TM210
- Trip Type : TM210
Product Data
- UPC : 804766944208
- GTIN : 00804766946073
- Country of Origin : Mexico
- Dimensions : 6.299 x 5.315 x 3.465 inch
- Weight : 1.638
- Standards : UL Listed
- Certification : UL Listed
