Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA4190-4ED34-0AA0

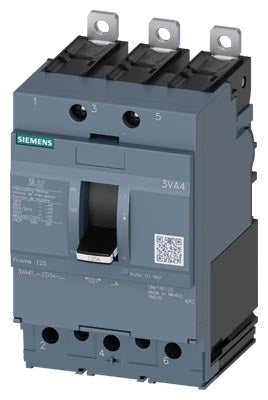

3VA4190-4ED34-0AA0 is a Siemens 3VA molded case circuit breaker with thermal-magnetic trip, rated at 90A, 3-pole, and 25kA interrupting capacity at 480V.This Siemens Sentron 3VA41 frame breaker features fixed thermal and fixed magnetic (FTFM) trip functions with line protection (TM210), suitable for reverse feed applications. It offers bolt-on mounting with load side lug terminals, non-interchangeable trip, and Class S breaking capacity per UL 489 standards. Rated operational voltage up to 690V AC with 25kA at 480V and 600Y/347V.
- Part Number: 3VA4190-4ED34-0AA0
- Manufacturer: Siemens
- Frame Size: 3VA41
- Amperage: 90A
- Poles: 3
- Voltage Rating: 600V AC / 690V operational
- Interrupt Rating: 25kA @ 480V (Class S)
- Trip Unit: Thermal-Magnetic (FTFM, TM210)
- Mounting: Bolt-On
- Terminals: Load Side Lug
- Tripping: Long Time and Instantaneous
- Standards: UL 489
Specifications
- Part Number: 3VA4190-4ED34-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 600V AC
- Amperage : 90
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Bolt-On
- Functions : LI
- Terminal Connection : Load Side Lug
- Frame Size : 125
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Thermal Magnetic
- Trip Type : TM210
Product Data
- UPC : 804766944161
- GTIN : 00804766944161
- Country of Origin : Mexico
- Dimensions : 6.299 x 5.315 x 3.465 inch
- Weight : 1.638
- Standards : UL Listed
- Certification : UL Listed
