3VA4180-6ED34-0AA0 - Siemens 80A 600V 3-Pole Circuit Breaker TM210 Trip Unit UL Frame 125

3VA4180-6ED34-0AA0

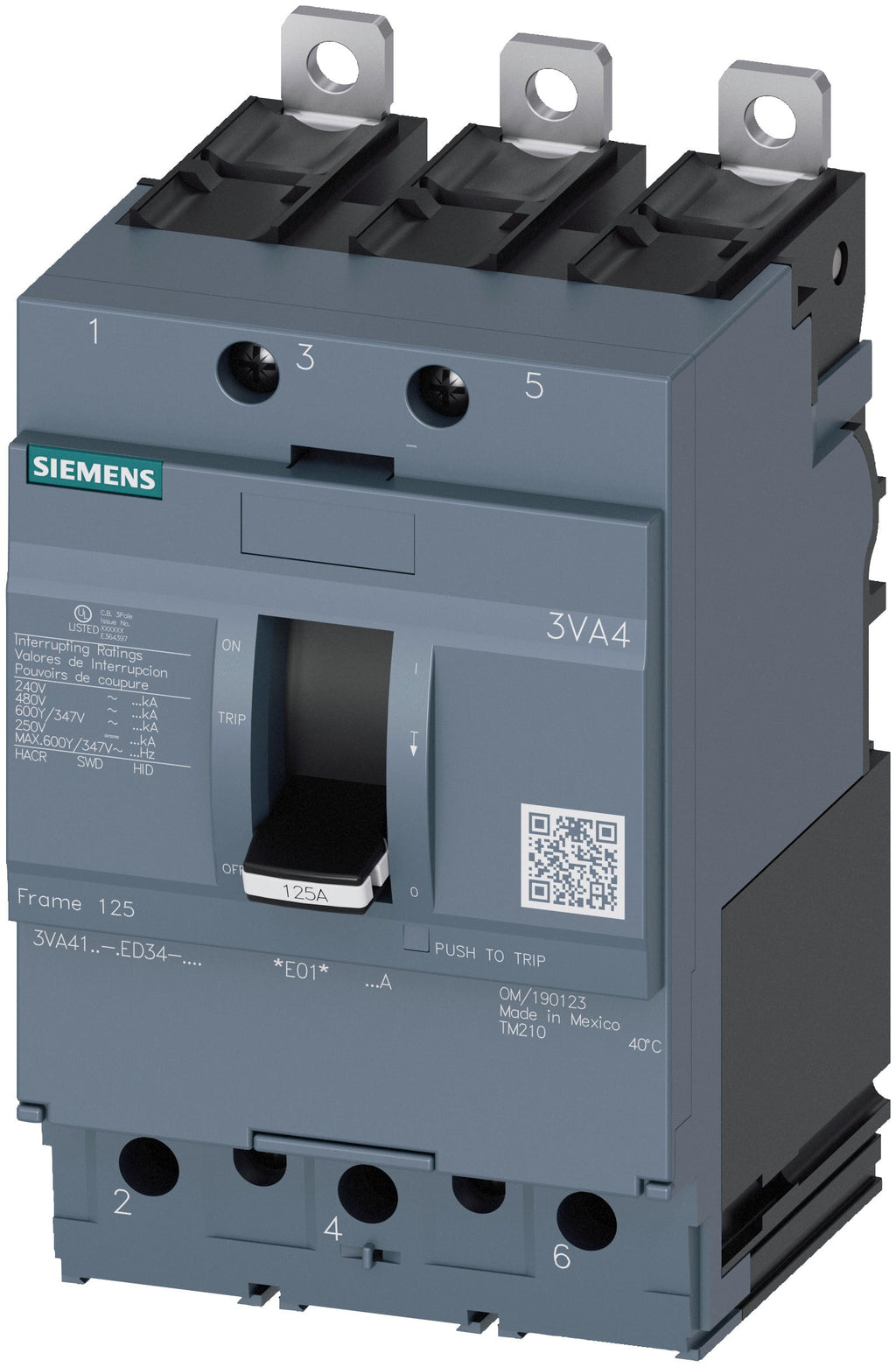

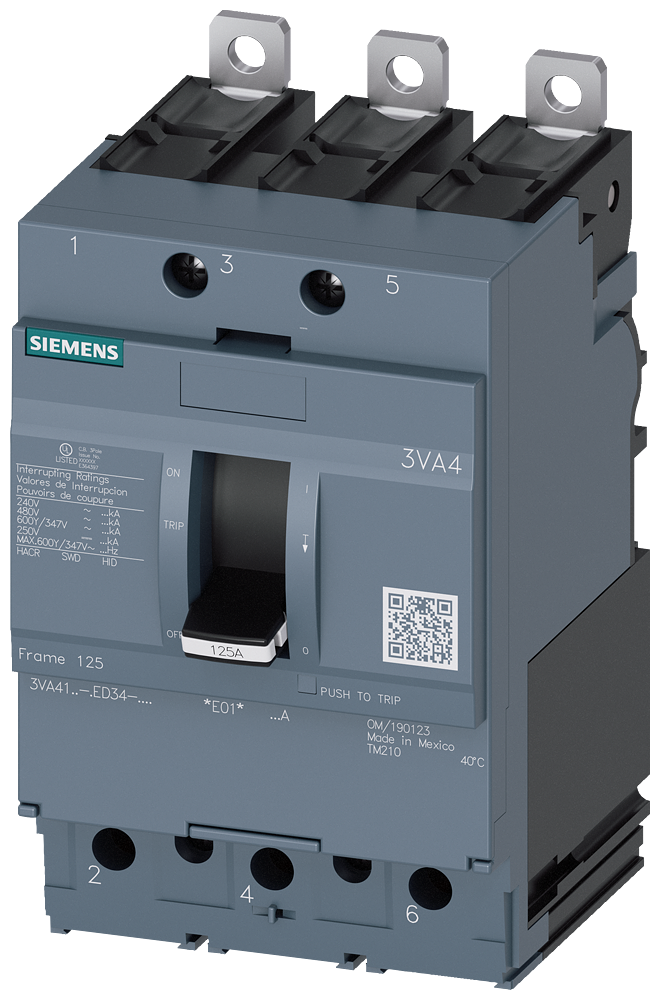

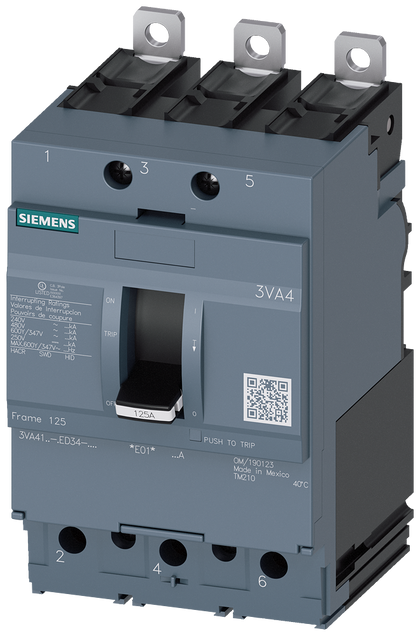

3VA4180-6ED34-0AA0 is a Siemens 3VA4 UL molded case circuit breaker designed for industrial, commercial, and residential applications requiring reliable overcurrent protection. This 3-pole breaker features a 125A frame size with thermal-magnetic trip protection and is rated for 80 amperes at 600 volts AC. The breaker delivers a breaking capacity of 65 kA at 480V, making it suitable for high-demand power distribution systems. It includes fixed overload protection at 80A and short-circuit protection set at 10 times the nominal current, with long-time and instantaneous trip functions. The breaker is suitable for reverse-fed applications and features load-side lug terminals with non-interchangeable trip design. Key Specifications

• Amperage: 80A
• Voltage: 600V AC
• Poles: 3-pole
• Frame Size: 125A (3VA4)
• Breaking Capacity: 65 kA @ 480V (Class H)
• Trip Unit: Thermal-Magnetic (TM210)
• Overload Protection: 80A fixed
• Short-Circuit Protection: 10 x In
• Connection Type: Terminal lug
• Weight: 0.743 kg
• Mechanical Service Life: 15,000 cycles
• Electrical Endurance: 8,000 cycles @ 480V

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3VA4180-6ED34-0AA0
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : 3VA
• Voltage : 600V AC
• Amperage : 80
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI
• Terminal Connection : Load Side Lug
• Frame Size : 125
• Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
• Protection : Thermal Magnetic
• Trip Type : TM210

Product Data

• UPC : 804766944147
• GTIN : 00804766944147
• Country of Origin : Mexico
• Dimensions : 6.299 x 5.315 x 3.465 inch
• Weight : 1.638
• Standards : UL Listed
• Certification : UL Listed
