Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA4160-6ED24-0AA0

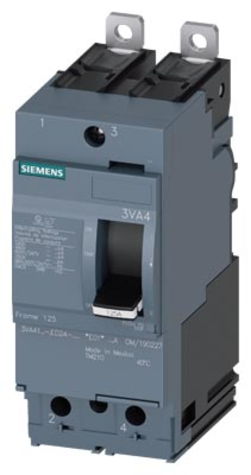

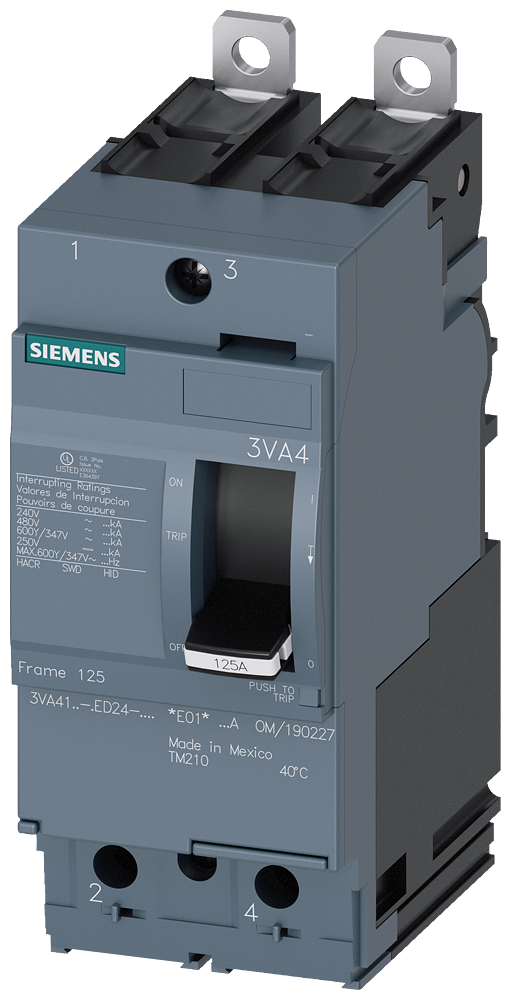

3VA4160-6ED24-0AA0 is a Siemens 3VA molded case circuit breaker featuring thermal-magnetic trip protection for line applications.This 2-pole circuit breaker from the 3VA41 frame offers high breaking capacity (Class H) with 65kA interrupt rating at 480V and fixed thermal-magnetic trip unit (TM210, FTFM) with Ir=60A and Ii=10xIn. It supports operational voltage up to 600Y/347V, clamp connections for 1x (8 AWG - 3/0) stranded conductors, and dimensions of 5.09in height by 2in width.
- Poles: 2
- Frame Size: 3VA41
- Amperage Rating: 60A
- Operational Voltage: 415V AC (rated), up to 600Y/347V
- Interrupt Rating: 65kA @ 480V, 100kA @ 240V, 25kA @ 600Y/347V
- Trip Unit: TM210 thermal-magnetic, fixed Ir=60A, Ii=10xIn
- Connection: Clamp, 1x (8 AWG - 3/0) stranded
- Breaking Capacity Class: H (UL 489)
- Mechanical Service Life: 15,000 cycles
- Dimensions: 129.4mm H x 50.8mm W
Specifications
- Part Number: 3VA4160-6ED24-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 480V AC
- Amperage : 60
- Phase : 1
- Poles : 2
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LI
- Terminal Connection : Load Side Lug
- Frame Size : 125
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Thermal Magnetic
- Trip Type : TM210
Product Data
- UPC : 804766943126
- GTIN : 00804766943126
- Country of Origin : Mexico
- Dimensions : 6.614 x 5.315 x 2.283 inch
- Weight : 1.133
- Standards : UL Listed
- Certification : UL Listed
