Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA4140-5ED24-0AA0

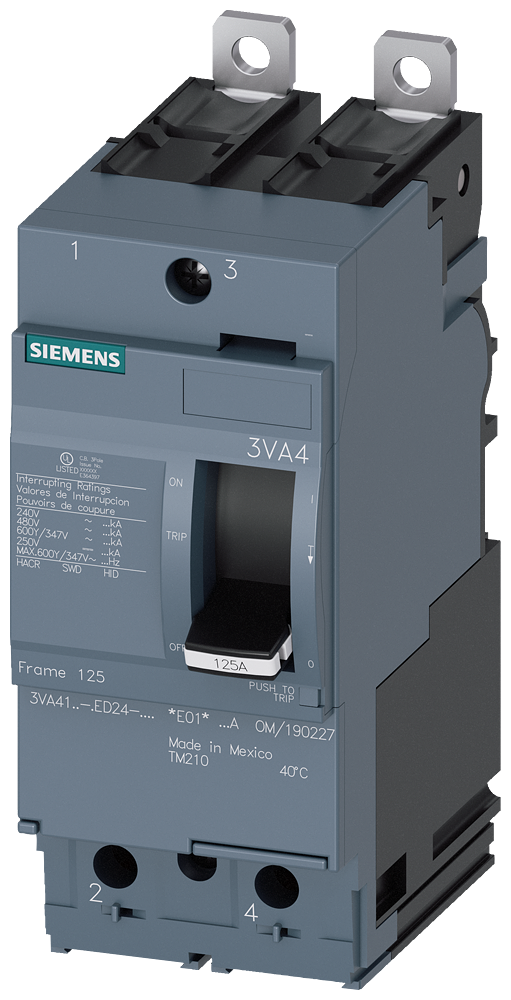

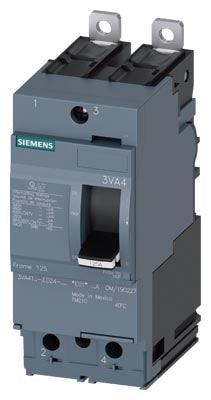

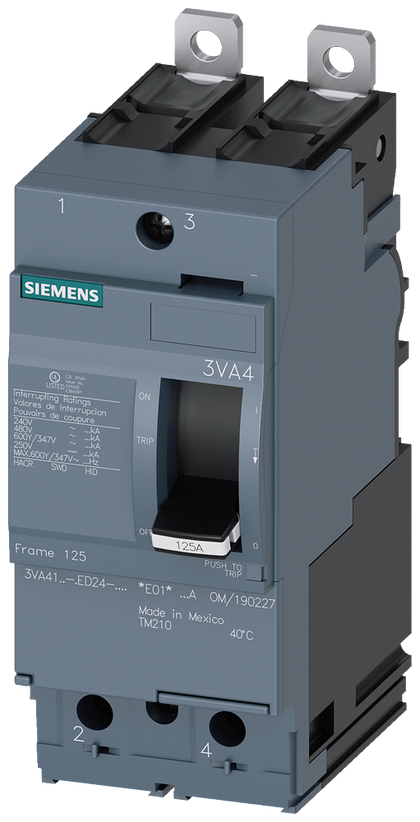

3VA4140-5ED24-0AA0 is a Siemens 2-pole molded case circuit breaker with a 40 amp rating and 480 volt AC voltage, designed for reliable circuit protection.This Siemens 3VA41 series breaker features a Class M breaking capacity frame with a 35 kA interrupt rating at 480V and 18 kA at 600Y/347V. It includes line protection with a TM210 trip unit and FTFM technology, providing precise overload and short circuit protection. The breaker is bolt-on mounted and UL listed, suitable for industrial and commercial applications.
- Key Specifications
- Manufacturer: Siemens
- Part Number: 3VA4140-5ED24-0AA0
- Amperage: 40 A
- Voltage: 480 V AC (600Y/347 V AC rated)
- Poles: 2
- Interrupt Rating: 35 kA @ 480 V, 18 kA @ 600Y/347 V
- Frame/Series: 3VA41, Class M
- Trip Unit: TM210, FTFM
- Mounting Type: Bolt-On
- Certifications: UL Listed
- Part Number: 3VA4140-5ED24-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 480V AC
- Amperage : 40
- Phase : 1
- Poles : 2
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI
- Terminal Connection : Load Side Lug
- Frame Size : 125
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Thermal Magnetic
- Trip Type : TM210
- UPC : 804766942921
- GTIN : 00804766942921
- Country of Origin : Mexico
- Dimensions : 6.614 x 5.315 x 2.283 inch
- Weight : 1.133 lb
- Standards : UL Listed
- Certification : UL Listed
