Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA4130-6ED14-0AA0

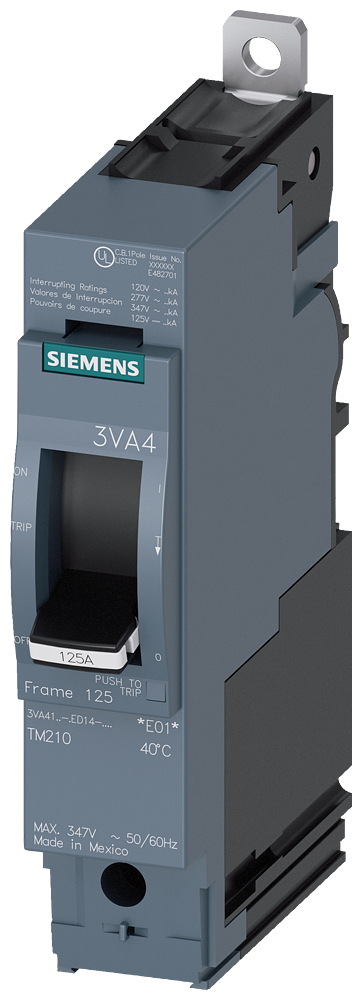

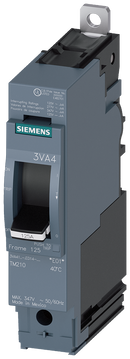

3VA4130-6ED14-0AA0 is a Siemens 3VA4 molded case circuit breaker rated at 30A, 1-pole with thermal-magnetic trip.
This UL 489 listed breaker features TM210 trip unit with fixed thermal and fixed magnetic protection (Ii=10xIn), line protection design, and clamp connection terminals. It offers high breaking capacity including 65kA at 277V, suitable for residential, commercial, and industrial applications with bolt-on mounting and reverse feed capability.
- Part Number: 3VA4130-6ED14-0AA0
- Manufacturer: Siemens
- Amperage: 30A
- Poles: 1
- Frame Size: 3VA4
- Trip Unit: TM210, thermal-magnetic
- Breaking Capacity: 65kA @ 277V (UL 489), Class H
- Operational Voltage: 415V AC
- Mounting: Bolt-on
- Protection: LI (long-time, instantaneous)
- HID Type: Yes
- SWD Type: No
Specifications
- Part Number: 3VA4130-6ED14-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 480V AC
- Amperage : 30
- Phase : 1
- Poles : 1
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LI
- Terminal Connection : Load Side Lug
- Frame Size : 125
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Thermal Magnetic
- Trip Type : TM210
Product Data
- UPC : 804766941924
- GTIN : 804766941924
- Country of Origin : Mexico
- Dimensions : 6.614 x 5.315 x 1.339 inch
- Weight : 0.617
- Standards : UL Listed
- Certification : UL Listed
