Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description

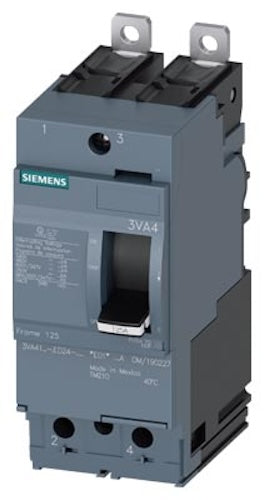

3VA4130-4ED24-0AA0
3VA4130-4ED24-0AA0 is a Siemens 2-pole molded case circuit breaker with a 30 ampere rating and 480V AC operating voltage designed for reliable system protection.This circuit breaker features a 3VA4 UL Frame 125 design with a breaking capacity of 25 kA at 480V. It includes a thermal magnetic trip unit (TM210) providing long-time and instantaneous overload protection. The breaker supports line protection, is suitable for reverse fed applications, and has load side lug terminals. It is UL listed for HACR and HID applications.
- Key Specifications
- Amperage: 30 A
- Voltage Rating: 480 V AC
- Number of Poles: 2
- Frame: 3VA4 UL Frame 125
- Interrupt Rating: 25 kA @ 480 V
- Trip Unit: Thermal Magnetic (TM210)
- Mounting Type: Bolt-On
- Load Side Lug Terminals
- Suitable for Reverse Fed Applications
- UL Listed for HACR and HID
Specifications
- Part Number: 3VA4130-4ED24-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 480V AC
- Amperage : 30
- Phase : 1
- Poles : 2
- AIC rating : 25kA@480V
- Connection : Bolt-On
- Functions : LI
- Terminal Connection : Load Side Lug
- Frame Size : 125
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Thermal Magnetic
- Trip Type : TM210
Product Data
- UPC : 804766942785
- GTIN : 00804766942785
- Country of Origin : Mexico
- Dimensions : 6.614 x 5.315 x 2.283 inch
- Weight : 1.133 lb
- Standards : UL Listed
- Certification : UL Listed
