3VA4120-6ED14-0AA0 - Siemens 20A 1-Pole 3VA Frame Circuit Breaker Class H 65kA 277V TM210 Trip Unit

3VA4120-6ED14-0AA0

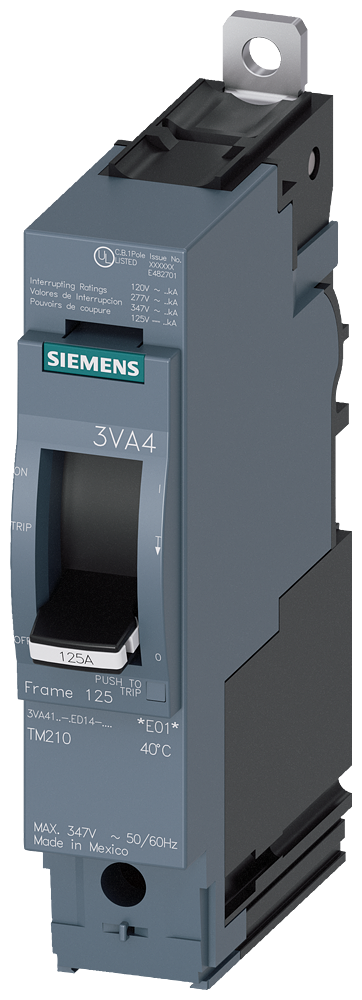

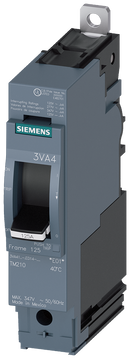

3VA4120-6ED14-0AA0 is a Siemens Sentron molded case circuit breaker designed for low voltage power distribution with thermal-magnetic trip protection and Class H breaking capacity.

This 1-pole breaker features a 3VA41 frame rated for 20 amperes with a TM210 thermal-magnetic trip unit providing fixed overload and short-circuit protection. The breaker delivers 65 kA interrupt rating at 277 VAC and 25 kA at 347 VAC, making it suitable for industrial and commercial applications. It includes lugs installed on the load side only and operates across 50/60 Hz frequencies with an operating temperature range of -25 to 70 degrees Celsius.

• Amperage Rating: 20 A
• Number of Poles: 1
• Frame Type: 3VA41 (125/150 A)
• Interrupt Rating: 65 kA at 277 VAC, 25 kA at 347 VAC
• Trip Type: TM210 Thermal-Magnetic
• Voltage Rating: 415 V AC (rated)
• Wire Size: 8 to 3/0 AWG
• Connection Type: Lug (Load End)
• Enclosure Type: IP40
• Frequency Rating: 50/60 Hz
• Temperature Range: -25 to 70 degrees Celsius
• Certifications: UL Class H Standard Low Voltage

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3VA4120-6ED14-0AA0
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : 3VA
• Voltage : 480V AC
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI
• Terminal Connection : Load Side Lug
• Frame Size : 125
• Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
• Protection : Thermal Magnetic
• Trip Type : TM210

Product Data

• UPC : 804766941801
• GTIN : 00804766941801
• Country of Origin : Mexico
• Dimensions : 6.614 x 5.315 x 1.339 inch
• Weight : 0.617
• Standards : UL Listed
• Certification : UL Listed
