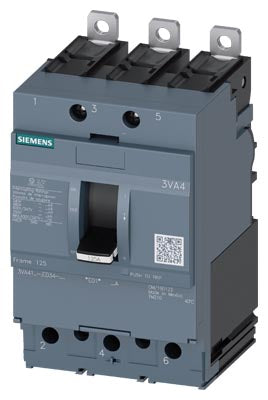

3VA4112-6ED34-0AA0 - Siemens 125A 3-Pole Molded Case Circuit Breaker 480V Class H Frame 3VA4 TM210 Trip Unit

3VA4112-6ED34-0AA0

3VA4112-6ED34-0AA0 is a Siemens 3VA4 molded case circuit breaker with UL frame 125, rated at 125A, 3-pole, thermal-magnetic trip unit TM210 for line protection.This breaker offers breaking capacity class H with 65kA at 480V, fixed thermal overload protection Ir=125A, and fixed short-circuit protection Ii=10xIn. It supports operational voltage up to 690V AC, LI protection function, and clamp connections for 1x (8 AWG - 3/0) stranded conductors. Dimensions are 5.09 in height, 3 in width, 2.96 in depth, with IP40 enclosure type.Key Specifications

• Part Number: 3VA4112-6ED34-0AA0
• Manufacturer: Siemens
• Amperage Rating: 125A
• Number of Poles: 3
• Frame Size: 125A UL
• Trip Unit: TM210, FTFM, Thermal-Magnetic
• Interrupt Rating: 65kA @ 480V, 100kA @ 240V
• Operational Voltage: 690V AC
• Protection: LI, Ir=125A fixed, Ii=10xIn
• Connection: Clamp, 1x (8 AWG - 3/0) stranded
• Dimensions: 129.4mm H x 76.2mm W x 75.1mm D
• Weight: 0.743 kg

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3VA4112-6ED34-0AA0
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : 3VA
• Voltage : 600V AC
• Amperage : 125
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI
• Terminal Connection : Load Side Lug
• Frame Size : 125
• Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
• Protection : Thermal Magnetic
• Trip Type : TM210

Product Data

• UPC : 804766943485
• GTIN : 00804766943485
• Country of Origin : Mexico
• Dimensions : 6.299 x 5.315 x 3.465 inch
• Weight : 1.638
• Standards : UL Listed
• Certification : UL Listed
