2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA4111-5ED34-0AA0

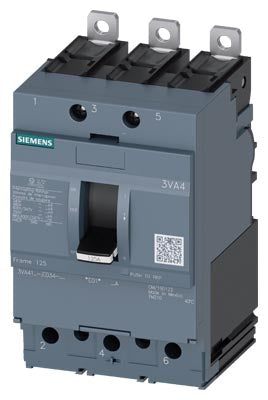

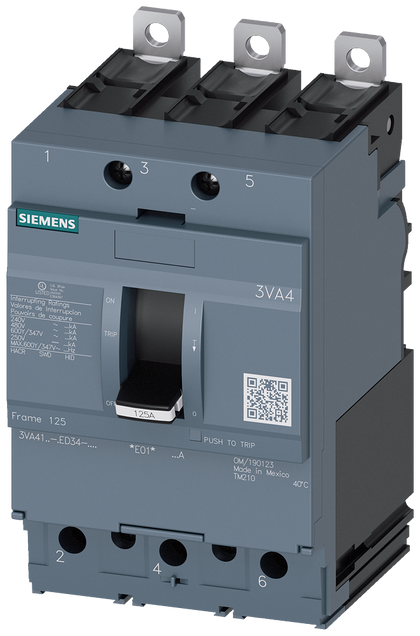

3VA4111-5ED34-0AA0 is a Siemens 3VA molded case circuit breaker with thermal-magnetic trip unit, rated at 110A, 3-pole configuration.This UL-listed breaker features a 3VA41 frame, TM210 trip unit with fixed overload protection at 110A and fixed short-circuit protection at 10x In, medium breaking capacity class M, and load side lugs. It provides reliable line protection for industrial and commercial applications up to 690V AC operational voltage.Key Specifications
- Manufacturer: Siemens
- Series: 3VA
- Frame: 3VA41
- Amperage: 110A
- Poles: 3
- Voltage: 690V AC max
- Trip Unit: TM210, thermal-magnetic
- Overload Protection: Fixed Ir=110A
- Short-Circuit Protection: Fixed Ii=10x In
- Interrupt Rating: 35kA @ 480V, 18kA @ 600Y/347V
- Protection Function: LI
- Approval: UL
- Terminal: Load side lugs
Specifications
- Part Number: 3VA4111-5ED34-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 600V AC
- Amperage : 110
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI
- Terminal Connection : Load Side Lug
- Frame Size : 125
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Thermal Magnetic
- Trip Type : TM210
Product Data
- UPC : 804766943409
- GTIN : 00804766943409
- Country of Origin : Mexico
- Dimensions : 6.299 x 5.315 x 3.465 inch
- Weight : 1.638
- Standards : UL Listed
- Certification : UL Listed
