Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA4111-4ED34-0AA0

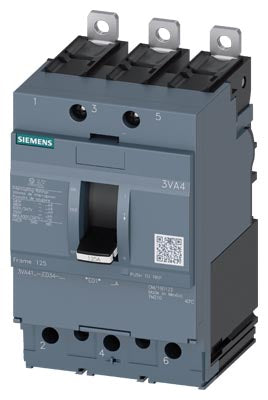

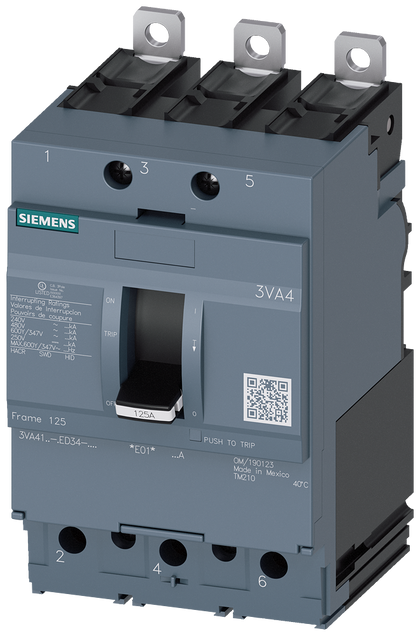

3VA4111-4ED34-0AA0 is a Siemens Sentron molded case circuit breaker with 3VA41 frame, thermal magnetic trip unit, and Class S breaking capacity.This 3-pole circuit breaker features TM210 trip unit with fixed thermal and magnetic settings, line protection, 110A rated current, and terminal connections for 8 to 3/0 AWG aluminum wire. It offers IP40 enclosure protection and dimensions of 5.5 in H x 3 in W x 3.7 in D, suitable for reverse feed applications.
- Part Number: 3VA4111-4ED34-0AA0
- Manufacturer: Siemens
- Type: Molded Case Circuit Breaker
- Series/Frame: 3VA41 / 125A
- Amperage: 110A
- Poles: 3
- Voltage: 600V AC
- Trip Unit: TM210 Thermal Magnetic, Fixed Ir=110A, Ii=10xIn
- Interrupt Rating: 25kA @ 480V, 65kA @ 240V
- Connection: Aluminum Wire/Load End/Lug, 8-3/0 AWG
- Enclosure: IP40
- Frequency: 50/60 Hz
Specifications
- Part Number: 3VA4111-4ED34-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 600V AC
- Amperage : 110
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Bolt-On
- Functions : LI
- Terminal Connection : Load Side Lug
- Frame Size : 125
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Thermal Magnetic
- Trip Type : TM210
Product Data
- UPC : 804766943386
- GTIN : 00804766943386
- Country of Origin : Mexico
- Dimensions : 6.299 x 5.315 x 3.465 inch
- Weight : 1.638 lb
- Standards : UL Listed
- Certification : UL Listed
