3VA4110-6ED34-0AA0 - Siemens 100A 600V 3-Pole Thermal Magnetic Molded Case Circuit Breaker 3VA4 Frame Class H Interrupt

3VA4110-6ED34-0AA0

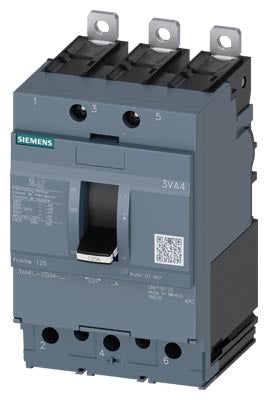

3VA4110-6ED34-0AA0 is a Siemens 3-pole molded case circuit breaker with thermal-magnetic trip protection, rated for 100 amps at 600 volts AC.

This low-voltage circuit breaker features a 3VA41 frame with Class H breaking capacity of 65 kA at 480V and 25 kA at 600Y/347V. The breaker includes a TM210 trip unit with fixed long-time and instantaneous trip functions, providing line protection and overload protection. It is suitable for reverse-fed applications and features load-side lug terminals with non-interchangeable trip design. The bolt-on mounting configuration makes it compatible with standard panelboards for residential, commercial, and industrial applications.

• Manufacturer: Siemens
• Part Number: 3VA4110-6ED34-0AA0
• Amperage: 100A
• Voltage: 600V AC
• Poles: 3
• Frame Type: 3VA41 UL Frame 125
• Breaking Capacity: 65 kA @ 480V, 25 kA @ 600Y/347V
• Trip Unit: TM210 Thermal-Magnetic
• Mounting: Bolt-On
• Terminal Type: Load-Side Lug Terminals
• Trip Functions: Long-Time and Instantaneous

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3VA4110-6ED34-0AA0
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : 3VA
• Voltage : 600V AC
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI
• Terminal Connection : Load Side Lug
• Frame Size : 125
• Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
• Protection : Thermal Magnetic
• Trip Type : TM210

Product Data

• UPC : 804766943362
• GTIN : 00804766943362
• Country of Origin : Mexico
• Dimensions : 6.299 x 5.315 x 3.465 inch
• Weight : 1.638 lb
• Standards : UL Listed
• Certification : UL Listed
