Description
3RV2901-1J

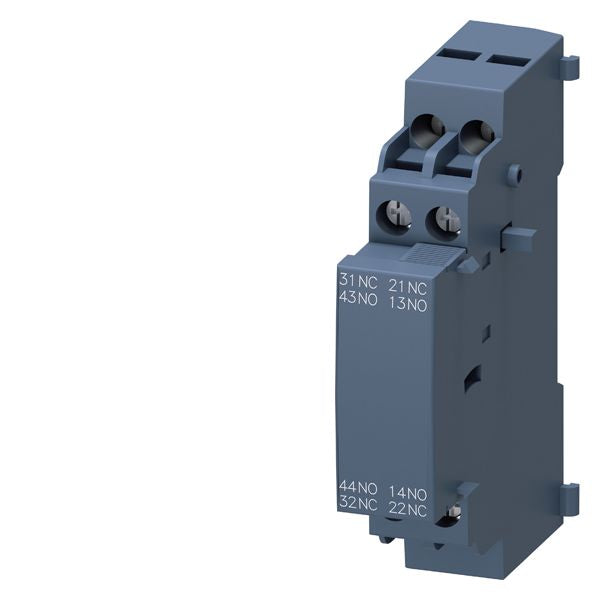

3RV2901-1J is a Siemens auxiliary switch designed for use with 3RV2 frame circuit breakers, providing reliable auxiliary contact functionality.This auxiliary switch features a 2NO (normally open) and 2NC (normally closed) contact configuration and mounts laterally on the side of compatible circuit breakers. It uses screw terminals for secure electrical connections and supports operational currents up to 10 A at voltages up to 690 V AC. The device is certified to CE, UL, CSA, CCC, and other international standards, ensuring compliance and safety.
- Auxiliary contact configuration: 2NO + 2NC
- Mounting type: Lateral side mount
- Connection type: Screw terminals
- Compatible with Siemens 3RV2 frame circuit breakers (sizes S00, S0, S2, S3)
- Rated operational current: 10 A at 24/230/400/690 V AC
- Rated insulation voltage: 690 V
- Surge voltage resistance: 6 kV
- Degree of pollution: 3
- Contact material and design suitable for AC-12 and AC-15 utilization categories
- Certifications: CE, UL, CSA, CCC, VDE, RoHS compliant
- Dimensions: 90 mm H x 18 mm W x 68 mm D
Specifications
- Part Number: 3RV2901-1J
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Auxiliary
- Family : 3RV2
- Configuration : 2NO/2NC
- Compatible Frames : 3RV2
Product Data
- UPC : 66264392476
- GTIN : 00662643924763
- Weight : 0.2068
