Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3RV2742-5ED10

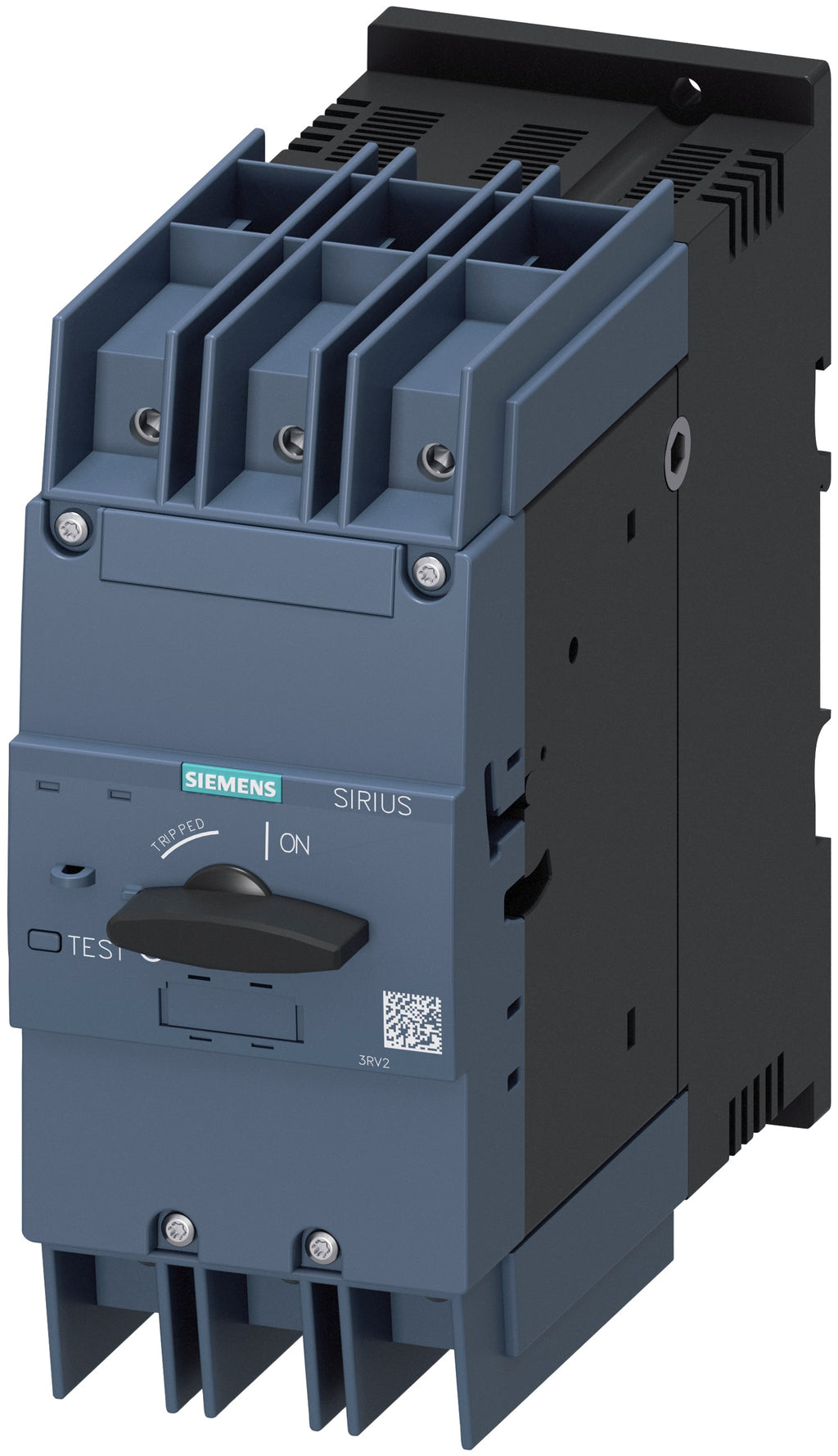

3RV2742-5ED10 is a Siemens SIRIUS 3RV2 motor starter protector designed for reliable system and motor protection in industrial applications. This 3-pole circuit breaker features a 30 A rated current, 690 VAC maximum voltage, and a 390 A interrupt rating, making it suitable for demanding environments. The device uses screw terminals for secure mounting and is built with a thermal magnetic trip unit for precise overload and short-circuit protection. It is certified to UL 489, CSA C22.2 No.5-02, CE, and IEC standards, ensuring compliance with international safety requirements. The 3RV2742-5ED10 is part of the S3 frame series and is ideal for applications requiring robust protection and easy installation. Its compact design and high reliability make it a preferred choice for motor control and system protection.
- Part Number: 3RV2742-5ED10
- Manufacturer: Siemens
- Rated Current: 30 A
- Maximum Voltage: 690 VAC
- Poles: 3
- Interrupt Rating: 390 A
- Mounting Type: Screw Terminal
- Series/Frame: S3
- Protection Type: Thermal Magnetic
- Certifications: UL 489, CSA C22.2 No.5-02, CE, IEC
- Power Loss: 12 W typical
- Insulation Voltage: 1000 V
Specifications
- Part Number: 3RV2742-5ED10
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sirius
Product Data
- Weight : 4.928
