3RV2031-4JA10

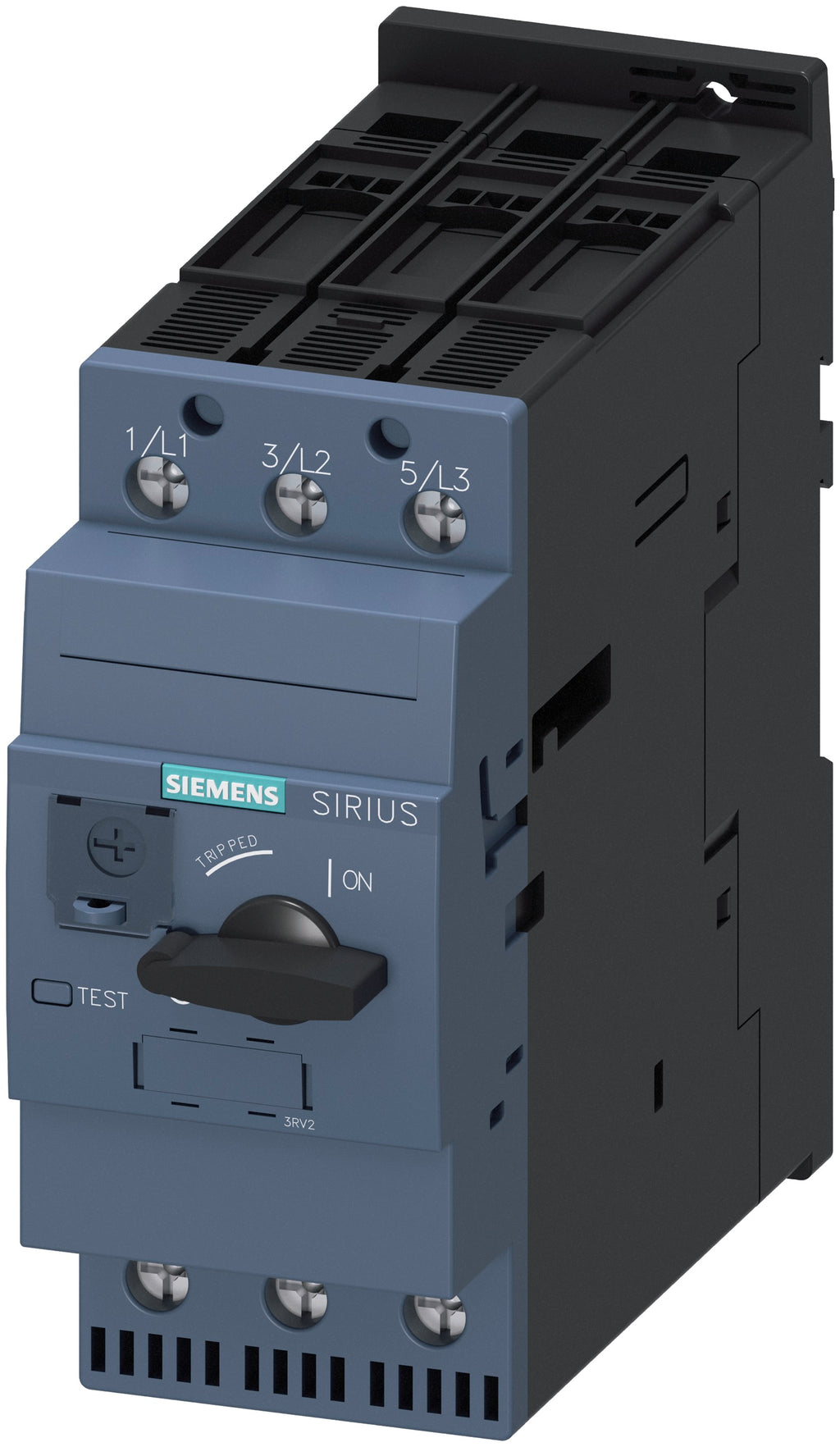

3RV2031-4JA10 is a Siemens SIRIUS motor protection circuit breaker designed for reliable overload and short circuit protection in industrial applications. This 3-pole device features a 54-65A adjustable trip range, 690V AC maximum switching voltage, and is built for DIN rail mounting. The breaker is phase loss sensitive and offers Class 10 protection for motors, making it ideal for demanding environments. This circuit breaker is constructed with a robust S2 frame and features screw terminals for secure connections. It is rated for a standard interrupt capacity and is suitable for use in a wide range of industrial and commercial installations. The device is RoHS compliant and designed for long mechanical and electrical life.
- Part Number: 3RV2031-4JA10
- Manufacturer: Siemens
- Series/Frame: SIRIUS S2
- Amperage Adjustment Range: 54-65A
- Rated Voltage: 690V AC
- Number of Poles: 3
- Mounting Type: DIN Rail
- Interrupt Rating: 4kA
- Protection Class: Class 10
- Phase Loss Sensitive: Yes
- Terminal Type: Screw
- Certifications: RoHS Compliant
Specifications
- Part Number: 3RV2031-4JA10
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sirius
Product Data
- Weight : 0.62
