Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3RV2031-4EA10

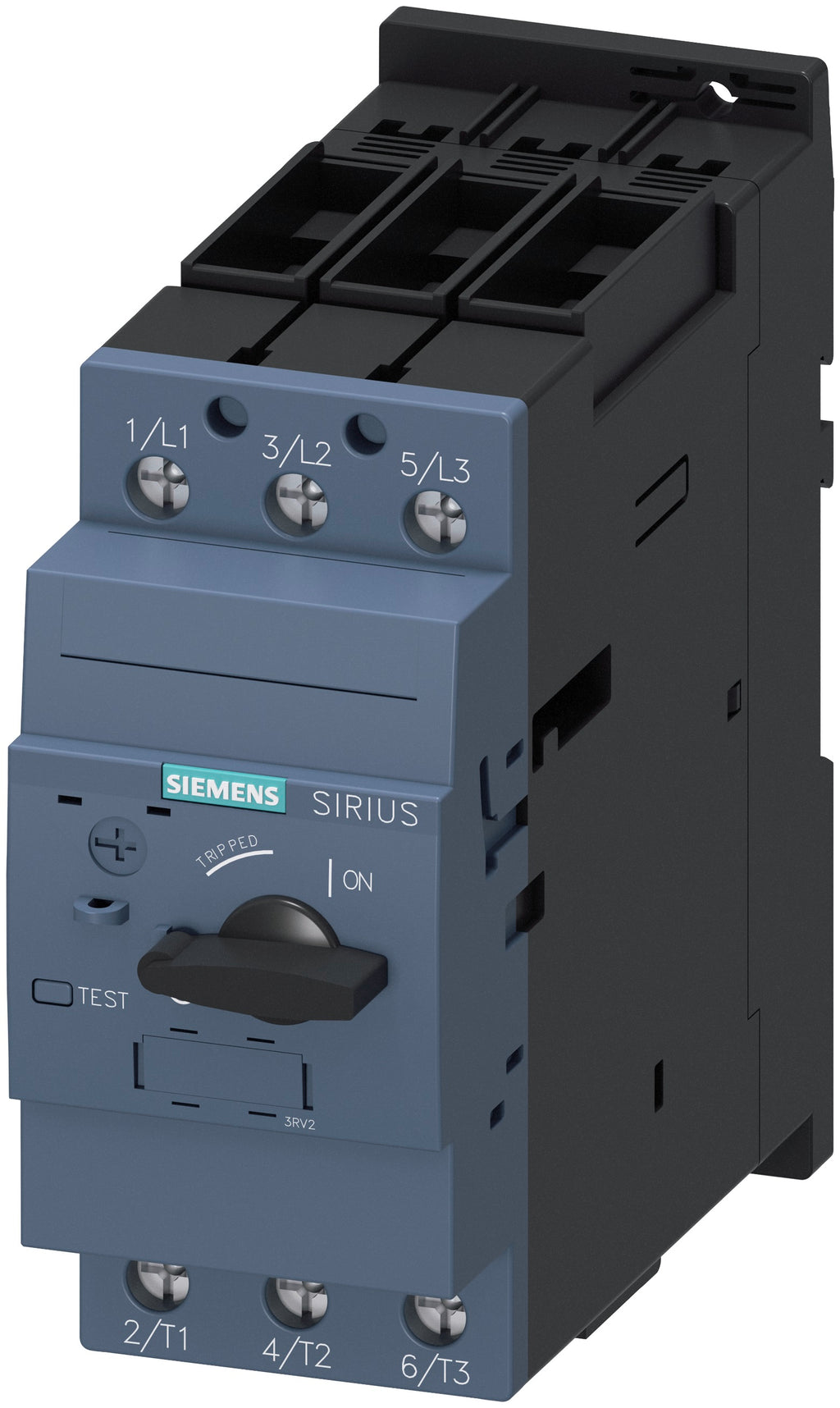

3RV2031-4EA10 is a Siemens motor protection circuit breaker designed for reliable motor overload and short circuit protection.This circuit breaker features an adjustable current range of 22 to 32 amps, 3 poles, and a voltage rating up to 690 VAC. It includes a Class 10 trip unit for motor protection, screw terminal connections, and DIN rail mounting for easy installation. The device provides a short circuit interrupt rating of 4 kA and is part of Siemens size S2 frame series.
- Key Specifications
- Amperage: Adjustable 22-32 A
- Voltage: Up to 690 VAC
- Poles: 3
- Mounting Type: DIN rail
- Interrupt Rating: 4 kA
- Trip Unit: Class 10 magnetic trip
- Terminal Type: Screw terminals
- Frame/Series: Size S2
- Protection Type: Motor overload and short circuit
- Power Rating: 30 kW
Specifications
- Part Number: 3RV2031-4EA10
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sirius
Product Data
- Country of Origin : Czechia
- Weight : 1.98
