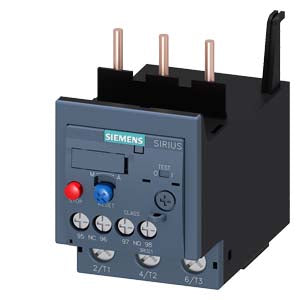

3RU21364EB0 - Siemens 22-32A Thermal Overload Relay, 3 Pole, Contactor Mounting, Class 10

3RU21364EB0

3RU21364EB0 is a Siemens thermal overload relay designed for motor protection with an adjustable amperage range of 22 to 32 amps and 3 poles.3RU21364EB0 provides overload and phase failure protection for 3-phase and 1-phase AC/DC motors. It features manual and automatic reset, a switch position indicator, test function, and stop button. The relay mounts directly on contactors with screw terminals for main and auxiliary circuits. It supports a voltage rating up to 690 V AC and has a Class 10 trip unit. The relay is suitable for industrial applications with an operating temperature range from -40 to 60 degrees Celsius.

Key Specifications
• Amperage range: 22-32 A adjustable
• Voltage rating: up to 690 V AC
• Poles: 3
• Mounting type: Contactor mounting
• Trip class: Class 10 thermal
• Contact configuration: 1NO + 1NC auxiliary contacts
• Connection type: Screw terminals
• Operating temperature: -40 to 60 °C
• Enclosure rating: IP00/IP20
• Dimensions: 90 mm H x 55 mm W x 105 mm D
• Auxiliary contact ratings: up to 3 A at 24-125 VAC, 2 A at 24 VDC
• Certifications: UL/CSA ratings B600 / R300

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3RU21364EB0
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : Sirius
• Type : 3RU21
• Relay Style : Thermal
• Aux Contacts : 1NO/1NC
• Amperage Maximum : 32
• Amperage Minimum : 22

Product Data

• UPC : 887621919528
• GTIN : 00887621919528
• Country of Origin : Germany
• Dimensions : 3.78 x 2.402 x 4.37 inch
• Weight : 0.701
• Certification : REACH Art 33 Duty to Inform According to the Current List of Candidates Lead CAS-No. 7439-92-1 Greater Than 0, 1 % (w/w), RoHS 07/01/2006, WEEE (2012/19/EU) Take-Back Obligation
