Product Info
- Manufacturer:Siemens
- Sub-Category:Overload Relay
Description
3RU1126-1EB0

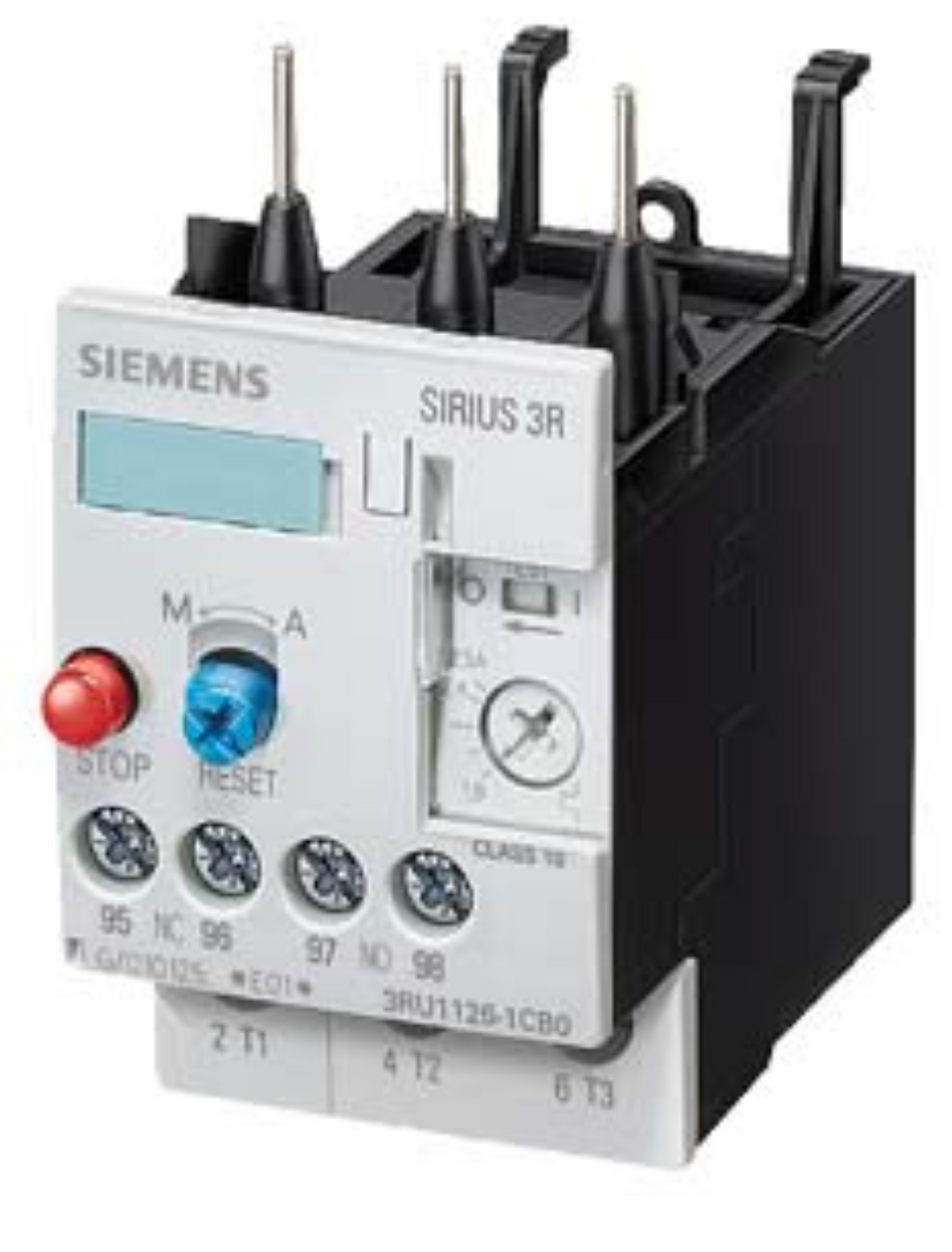

3RU1126-1EB0 is a Siemens Sirius thermal overload relay designed for three-phase motor protection with adjustable amperage settings and Class 10 tripping characteristics. This IEC-rated relay provides reliable motor circuit protection with both manual and automatic reset capabilities, making it suitable for industrial motor control applications. The relay features a compact Size S0 design optimized for contactor mounting in motor starter assemblies. Key Specifications
- Amperage Rating: 2.8 to 4.0 Amps adjustable
- Voltage Rating: 690 V
- Trip Class: Class 10 (trips in 10 seconds or less)
- Frame Size: S0
- Motor Protection: Three-phase motors
- Reset Options: Manual and automatic reset
- Phase Loss Protection: Yes
- Main Circuit Connection: Screw terminal
- Auxiliary Circuit Connection: Screw terminal
- Mounting Type: Contactor mounting
- Thermal/Bimetallic Design: Yes
Specifications
- Part Number: 3RU1126-1EB0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Overload Relay
- Family : Sirius
- Type : 3RU11
- Relay Style : Thermal
- Amperage Maximum : 4
- Amperage Minimum : 2.8
Product Data
- GTIN : 04011209299535
- Weight : 0.396
