Description
3RT25351AK60

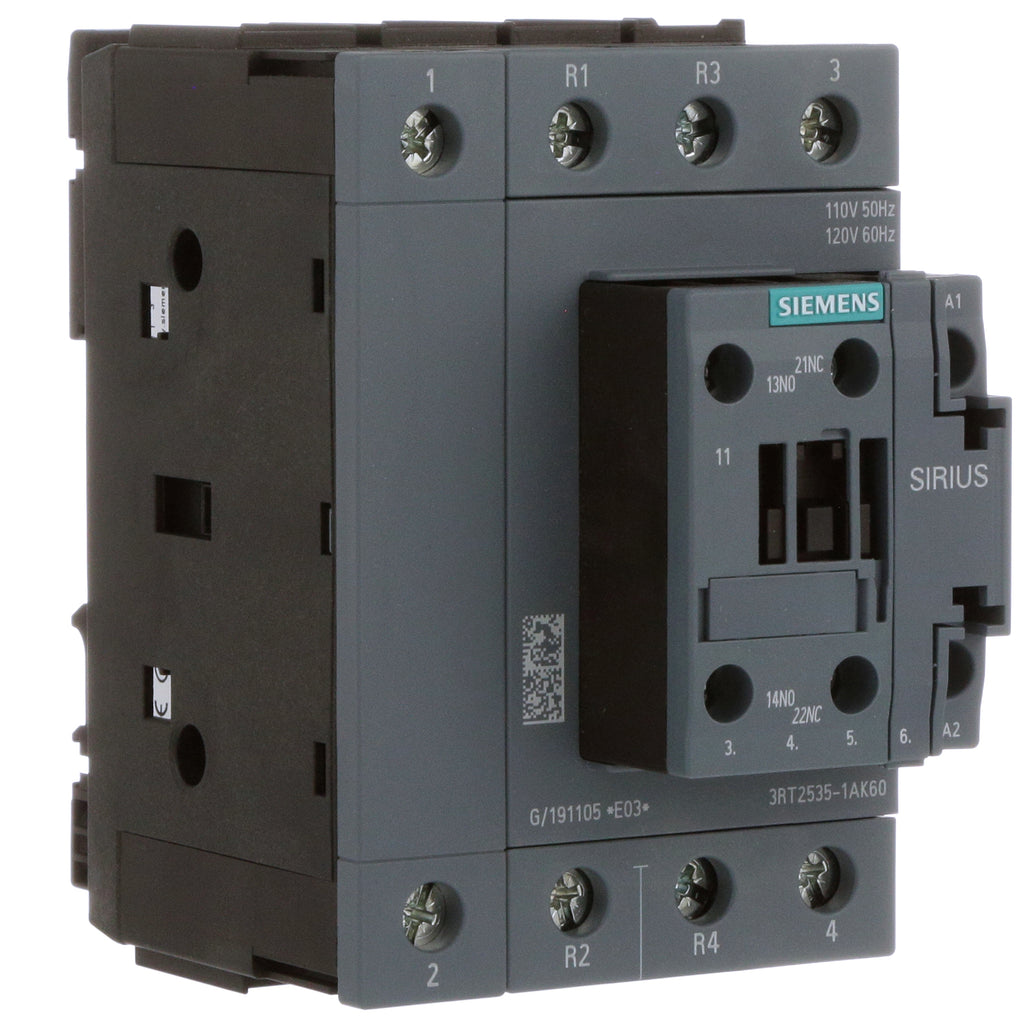

3RT25351AK60 is a Siemens Sirius power contactor designed for reliable motor control in industrial applications. This 4-pole, 3-phase contactor features a 110/120V AC coil, 35A AC-3 rating, and is suitable for use up to 690V. It offers robust performance with screw terminal connections and DIN rail mounting for easy installation. The Siemens Sirius 3RT25351AK60 contactor is built to IEC standards and is ideal for motor loads up to 18.5 kW at 400V. It includes 2 NO + 2 NC main contacts and 1 NO + 1 NC auxiliary contacts for flexible control circuit integration. The contactor is rated for 690V insulation and features a surge voltage resistance of 6 kV for added protection.
- Part Number: 3RT25351AK60
- Manufacturer: Siemens
- Series/Frame: Sirius S2
- Amperage: 35A AC-3
- Rated Voltage: 690V
- Poles: 4
- Coil Voltage: 110/120V AC
- Mounting Type: 35mm DIN Rail/Vertical
- Main Contacts: 2 NO + 2 NC
- Auxiliary Contacts: 1 NO + 1 NC
- Insulation Voltage: 690V
- Surge Voltage Resistance: 6 kV
Specifications
- Part Number: 3RT25351AK60
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT
- Voltage : 690
- Amperage : 55
- Phase : 3
- Poles : 3
- Aux Contacts : 2NO/2NC
- Coil Voltage Maximum : 120
- Full Load Amps : Full Load Amps-Inductive 35A Full Load Amps-Resistive 60A
Product Data
- UPC : 887621918903
- GTIN : 00887621918903
- Country of Origin : Germany
- Dimensions : 4.823 x 3.228 x 5.591 inch
- Weight : 2.646
- Certification : REACH Art 33, WEEE (2012/19/EU)
