Description
3RT2325-1BB40

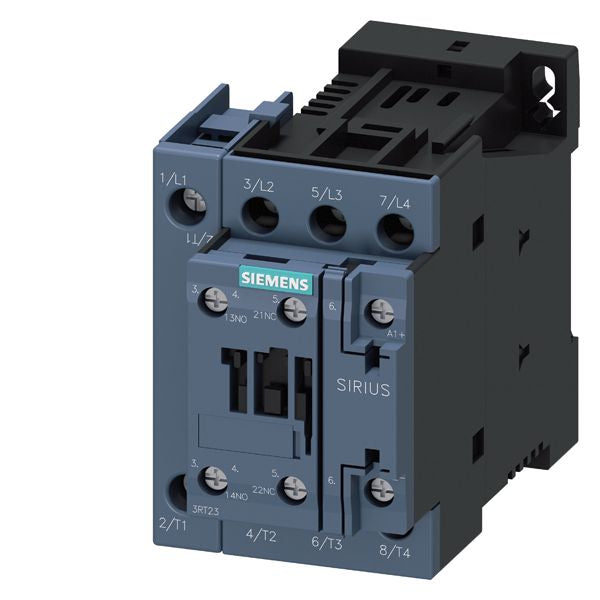

3RT2325-1BB40 is a Siemens IEC magnetic contactor designed for reliable motor control and switching applications. This non-reversing contactor features a compact S0 frame size with screw terminal connections for secure installation in industrial control panels.Technical Overview: The contactor operates with a 24 VDC coil voltage and delivers a contact current rating of 35 A at AC-1 duty. It is rated for 400 V at 40 degrees Celsius and includes 4 poles with 1 NO plus 1 NC auxiliary contacts. The screw terminal design ensures dependable electrical connections, while the S0 frame size provides space-efficient mounting in standard enclosures. Operating temperature range spans from -25 degrees Celsius to +60 degrees Celsius, supporting reliable performance across diverse industrial environments.Key Specifications
- Part Number: 3RT2325-1BB40
- Manufacturer: Siemens
- Contact Current Rating: 35 A
- Coil Voltage: 24 VDC
- Number of Poles: 4
- Auxiliary Contacts: 1 NO + 1 NC
- Rated Voltage: 400 V
- Frame Size: S0
- Termination Type: Screw Terminal
- Duty Rating: AC-1
- Operating Temperature Range: -25 degrees Celsius to +60 degrees Celsius
- Contactor Style: IEC Magnetic
Specifications
- Part Number: 3RT2325-1BB40
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT23
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 4
- Coil Voltage Maximum : 24
Product Data
- UPC : 051712147149
- GTIN : 00051712147149
- Weight : 1
