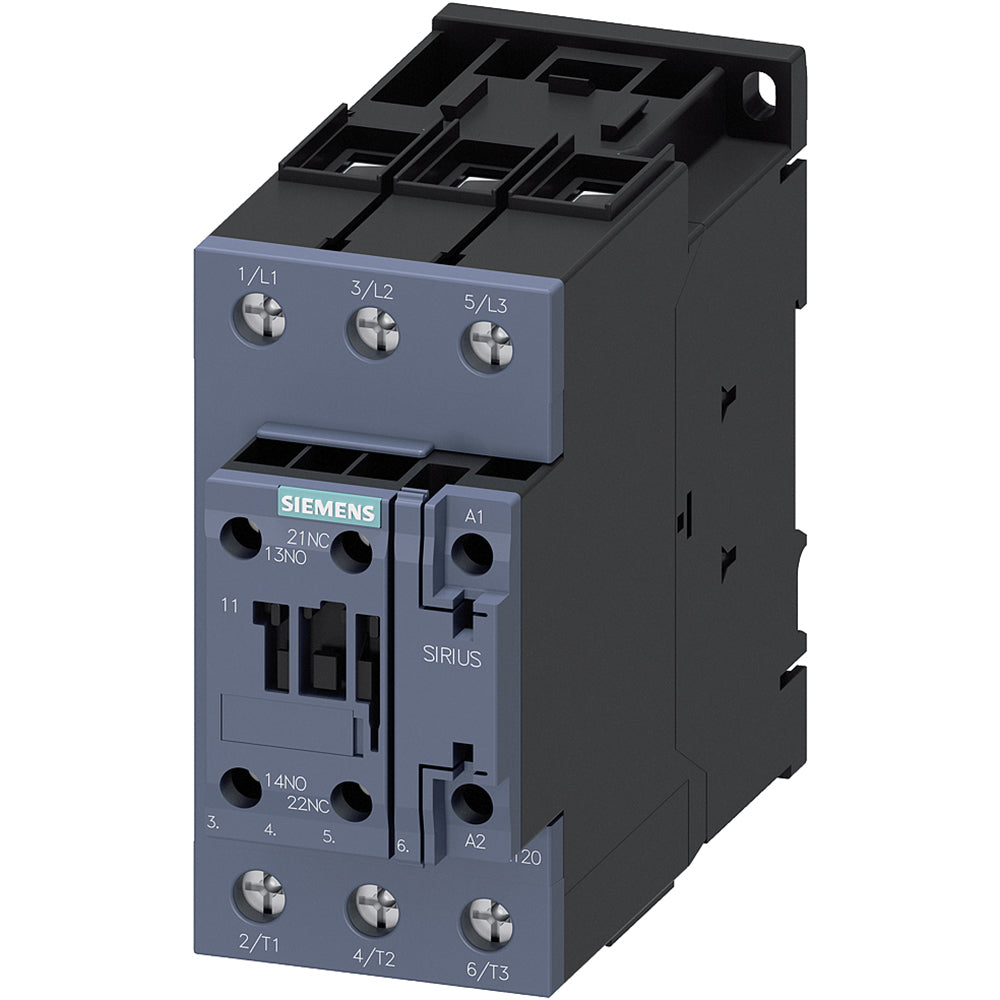

3RT20381AK60 - Siemens 80A 3-Pole Motor Contactor 110V AC Coil IEC S2 Frame

3RT20381AK60

3RT20381AK60 is a Siemens 3-pole motor contactor designed for reliable motor control applications with an 80 ampere rating and 110V AC coil voltage.This Siemens Sirius contactor features a 3-pole configuration suitable for 3-phase motors, with a rated operational current of 80A at AC-3 utilization category. It supports motor power ratings up to 37 kW at 400V and complies with IEC standards. The contactor includes auxiliary contacts (1 NO + 1 NC) and is designed for DIN rail mounting in industrial control panels. It operates within a temperature range of -25 to 60 degrees Celsius and is part of the S2 frame size series.

Key Specifications
• Amperage: 80 A (AC-3)
• Voltage: 110 V AC coil (50 Hz) / 120 V AC coil (60 Hz)
• Poles: 3
• Frame Size: S2
• Motor Power Rating: 37 kW at 400 V
• Auxiliary Contacts: 1 NO + 1 NC
• Mounting Type: DIN rail
• Operating Temperature: -25 to 60 °C
• Standards: IEC 60946 compliant
• Connection Type: Screw terminals

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3RT20381AK60
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Sirius
• Type : 3RT
• Voltage : 690
• Amperage : 65
• Phase : 3
• Poles : 3
• Horse Power : HP @ 3 Phase - 208V 20 hp HP @ 3 Phase - 240V 25 hp HP @ 3 Phase - 480V 50 hp
• Aux Contacts : 1NO/1NC
• Coil Voltage Maximum : 120
• Full Load Amps : Full Load Amps-Inductive 65A Full Load Amps-Resistive 90A

Product Data

• UPC : 887621917999
• GTIN : 00887621917999
• Country of Origin : Germany
• Dimensions : 4.823 x 2.441 x 5.591 inch
• Weight : 2.185
• Certification : REACH Art 33, WEEE (2012/19/EU)
