3RT20371AP60 - Siemens 65A 3-Pole Contactor 240V AC Coil S2 Frame

3RT20371AP60

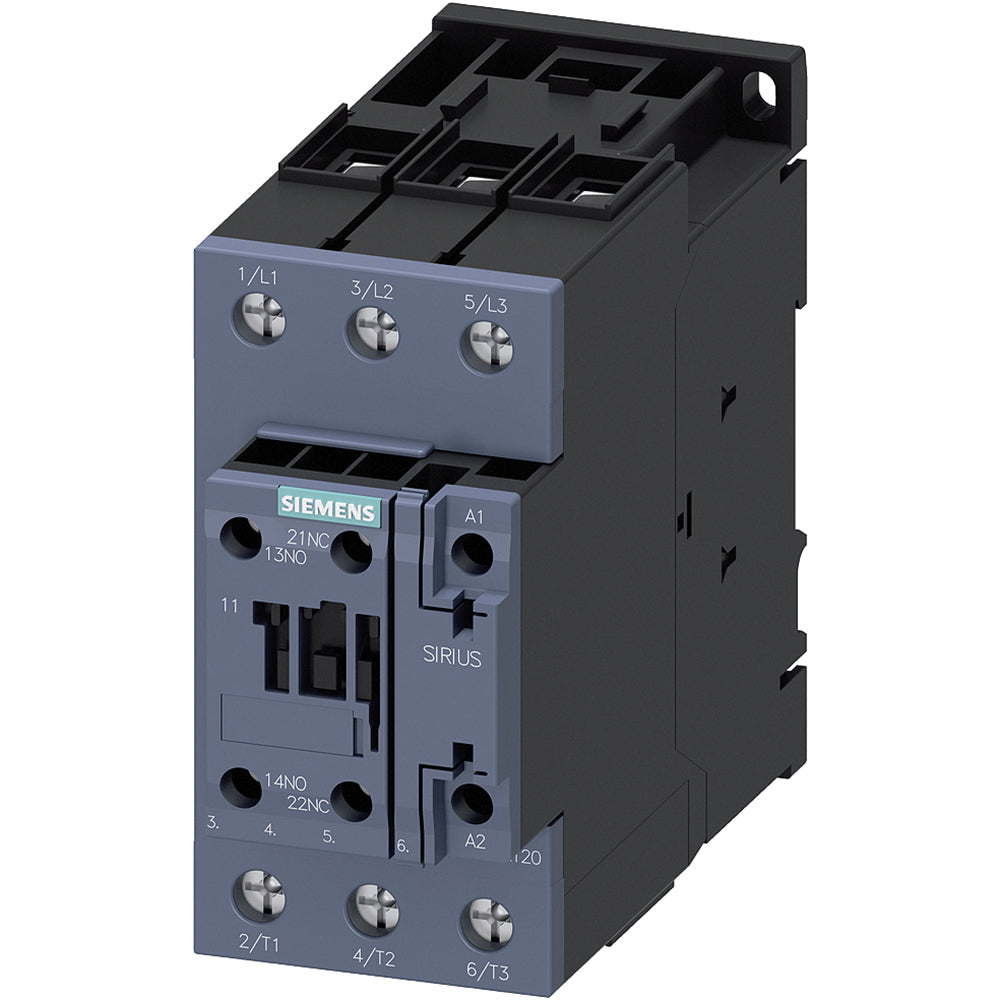

3RT20371AP60 is a Siemens SIRIUS power contactor designed for AC-3 motor control applications with a rated capacity of 30 kW at 400 V and 65 A switching current.

This 3-pole contactor features a Size S2 frame with screw terminal connections and is rated for 240 VAC 60 Hz coil voltage (220 VAC 50 Hz equivalent). The unit includes 1 NO (normally open) and 1 NC (normally closed) auxiliary contact configuration, making it suitable for reversing and non-reversing motor starter applications. Operating temperature range is -25°C to 60°C, and the contactor supports both DIN rail and vertical mounting options.

Key Specifications
• Part Number: 3RT20371AP60
• Manufacturer: Siemens
• Poles: 3-pole
• Amperage: 65 A
• Coil Voltage: 240 VAC 60 Hz / 220 VAC 50 Hz
• Switching Voltage: 690 VAC maximum
• Rated Power: 30 kW at 400 V (AC-3)
• Frame Size: S2
• Auxiliary Contacts: 1 NO + 1 NC
• Termination: Screw Terminal
• Operating Temperature: -25°C to 60°C
• Mounting: DIN Rail / Vertical Mount

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3RT20371AP60
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Sirius
• Type : 3RT20
• Voltage : 690
• Amperage : 65
• Phase : 3
• Poles : 3
• Horse Power : HP @ 3 Phase - 208V 20 hp HP @ 3 Phase - 240V 20 hp HP @ 3 Phase - 480V 50 hp
• Aux Contacts : 1NO/1NC
• Coil Voltage Maximum : 240
• Full Load Amps : Full Load Amps-Inductive 65A Full Load Amps-Resistive 80A

Product Data

• UPC : 887621917395
• GTIN : 00887621917395
• Country of Origin : Germany
• Dimensions : 4.823 x 2.441 x 5.591 inch
• Weight : 2.183
