Description
3RT20351AM20

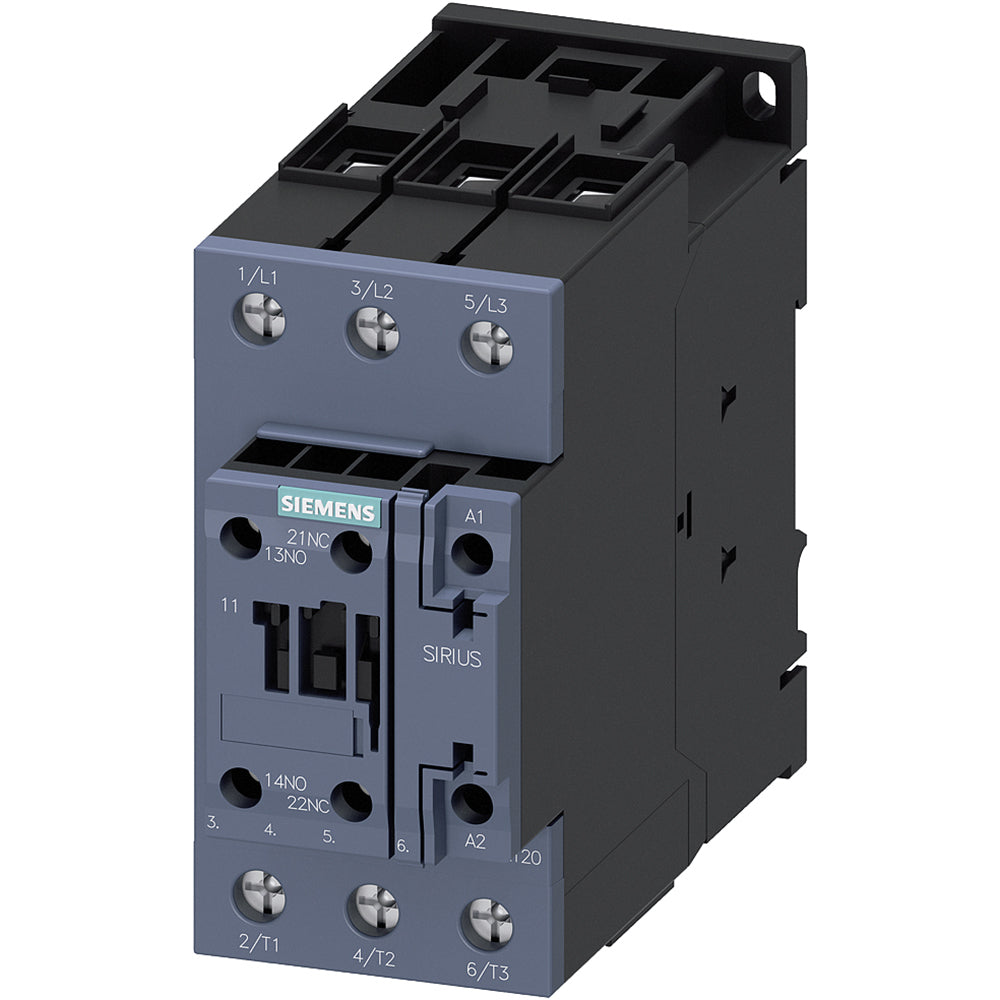

3RT20351AM20 is a Siemens 3-pole motor contactor designed for reliable motor control applications.3RT20351AM20 features a 40 ampere rating with an AC-3 utilization category, suitable for switching motors up to 18.5 kW at 400 V. It operates on a 208 V AC coil at 50/60 Hz frequency and includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contact. The contactor is size S2 with screw terminal connections and is designed for DIN rail or vertical mounting.
- Amperage: 40 A
- Voltage: 208 V AC coil, 400 V motor voltage
- Poles: 3-pole
- Power rating: 18.5 kW at 400 V
- Auxiliary contacts: 1 NO + 1 NC
- Mounting type: DIN rail / vertical mount
- Terminal type: Screw terminal
- Size/Frame: S2
- Frequency: 50/60 Hz
- Utilization category: AC-3
Specifications
- Part Number: 3RT20351AM20
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT20
- Voltage : 690
- Amperage : 40
- Phase : 3
- Poles : 3
- Horse Power : HP @ 3 Phase - 208V 10 hp HP @ 3 Phase - 240V 15 hp HP @ 3 Phase - 480V 30 hp
- Aux Contacts : 1NO/1NC
- Coil Voltage Maximum : 208
- Full Load Amps : Full Load Amps-Inductive 40A Full Load Amps-Resistive 60A
Product Data
- UPC : 887621915568
- GTIN : 00887621915568
- Country of Origin : Germany
- Dimensions : 4.823 x 2.441 x 5.591 inch
- Weight : 2.293
- Certification : eClass, ETIM, IDEA, REACH Art 33, UNSPSC, WEEE (2012/19/EU)
