Description

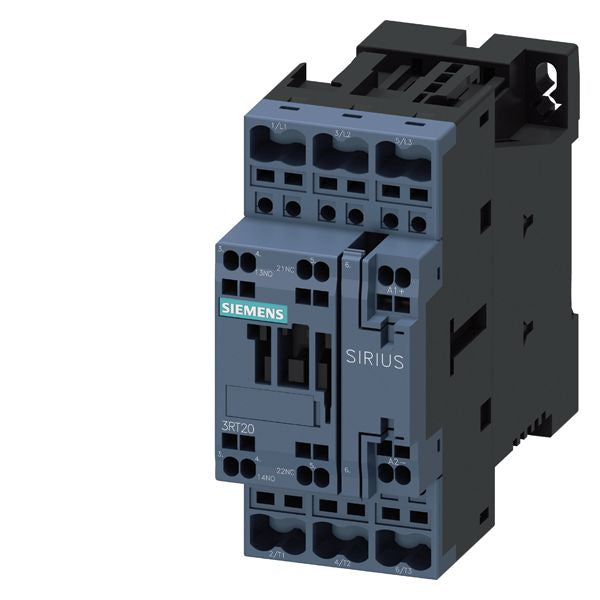

3RT2028-2XF40-0LA2
3RT2028-2XF40-0LA2 is a Siemens SIRIUS 3RT Size S0 traction contactor designed for AC-3e/AC-3 duty cycle applications with reliable motor control performance. This 3-pole contactor features a 38 A rated current at 400 V, delivering 18.5 kW switching capacity with a 110 V DC coil supply. The unit incorporates solid-state operating mechanism technology with integrated varistor protection and auxiliary contacts configured as 1 NO + 1 NC for flexible control circuit integration. Engineered for industrial motor switching applications, this contactor meets demanding operational requirements with compact S0 frame dimensions of 45 mm width by 102 mm height. The device operates within a control voltage range of 0.7-1.25 times the rated coil voltage and is RoHS-compliant for environmental standards compliance.
- Rated Current: 38 A
- Power Rating: 18.5 kW at 400 V
- Poles: 3-pole
- Coil Voltage: 110 V DC
- Duty Cycle: AC-3e/AC-3
- Frame Size: S0
- Auxiliary Contacts: 1 NO + 1 NC
- Operating Mechanism: Solid-state with integrated varistor
- Control Voltage Range: 0.7-1.25 Us
- Dimensions: 45 mm W x 102 mm H
- RoHS Compliant: Yes
Specifications
- Part Number: 3RT2028-2XF40-0LA2
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT20
- Voltage : 600
- Amperage : 38
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 110
- Coil Voltage Minimum : 110
Product Data
- UPC : 786679611111
- GTIN : 00786679611111
- Weight : 1
