Description

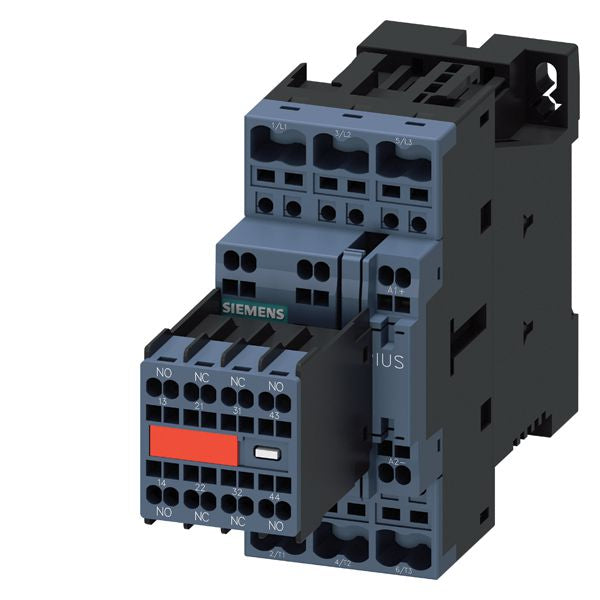

3RT2027-2BB44-3MA0
3RT2027-2BB44-3MA0 is a Siemens Sirius 3-pole contactor designed for reliable motor control applications. This contactor features a 24VDC coil and is rated for 32A continuous current, making it suitable for demanding industrial environments. The unit is equipped with 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts, providing flexible control options. The spring-loaded terminal design ensures secure wiring connections, while the DIN rail mounting style allows for easy installation in control panels. This Siemens contactor is built to handle AC-3 loads up to 15kW at 400V and is rated for a maximum operating voltage of 600V. The device is designed for use in applications requiring a robust and compact contactor with a size S0 frame. The auxiliary contacts are captive, ensuring reliable operation and easy maintenance.
- Part Number: 3RT2027-2BB44-3MA0
- Manufacturer: Siemens
- Series: Sirius
- Frame Size: S0
- Current Rating: 32A
- Operating Voltage: 600V
- Coil Voltage: 24VDC
- Poles: 3
- Mounting Style: DIN Rail
- Auxiliary Contacts: 2NO + 2NC
- Terminal Type: Spring-loaded
- Application: AC-3e/AC-3
Specifications
- Part Number: 3RT2027-2BB44-3MA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT20
- Voltage : 600
- Amperage : 32
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 24
- Coil Voltage Minimum : 24
Product Data
- UPC : 066264391764
- GTIN : 00662643917642
- Weight : 1
