Description

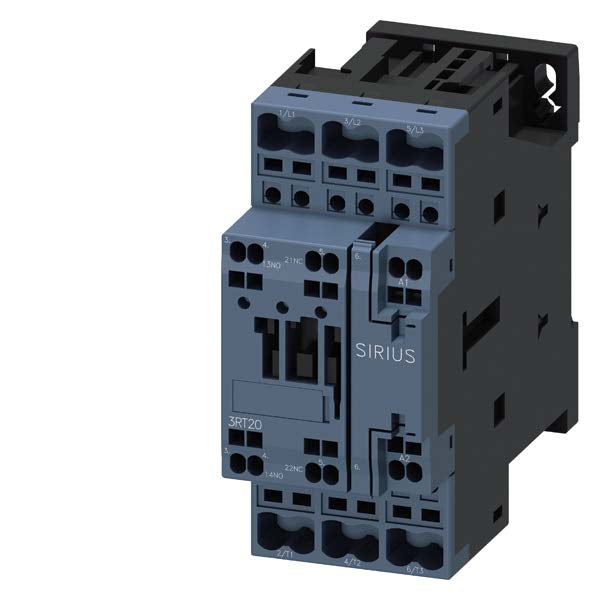

3RT2027-2AC20
3RT2027-2AC20 is a Siemens Sirius motor contactor designed for reliable motor control applications.This 3-pole contactor features a 32 ampere rating and operates with a 24 VAC coil voltage at 50/60 Hz. It supports AC-3 utilization category with a power rating of 15 kW at 400 V. The contactor is built on the S0 frame size and includes 1 normally open (NO) and 1 normally closed (NC) contact configuration. It uses spring-type terminals for secure and easy wiring and is suitable for 3-phase motor control. The device is designed for DIN rail or vertical mounting with a 35 mm rail width. Protection class is IP20 on the front and terminals, with a pollution degree rating of 3.
- Key Specifications
- Amperage: 32 A
- Poles: 3
- Coil Voltage: 24 VAC, 50/60 Hz
- Power Rating: 15 kW at 400 V
- Frame Size: S0
- Contact Configuration: 1 NO + 1 NC
- Terminal Type: Spring terminals
- Mounting: 35 mm DIN rail / vertical mount
- Protection Class: IP20 front and terminals
- Pollution Degree: 3
- Part Number: 3RT2027-2AC20
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT20
- Voltage : 600
- Amperage : 32
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 24
- UPC : 066264391602
- GTIN : 00662643916027
- Weight : 1
