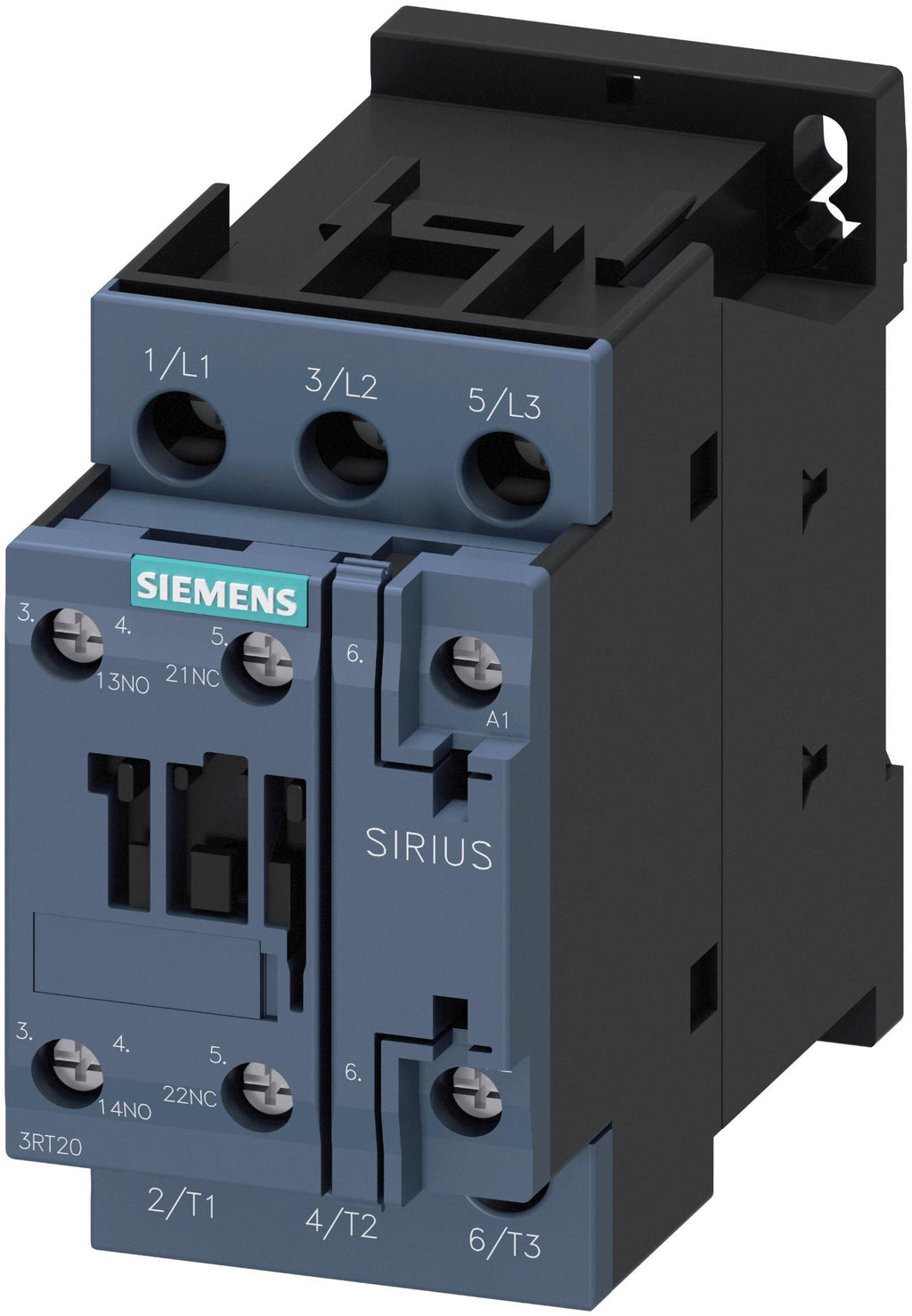

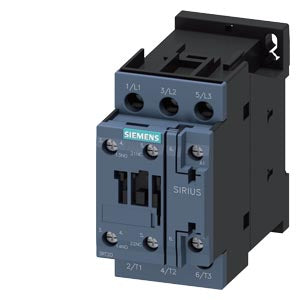

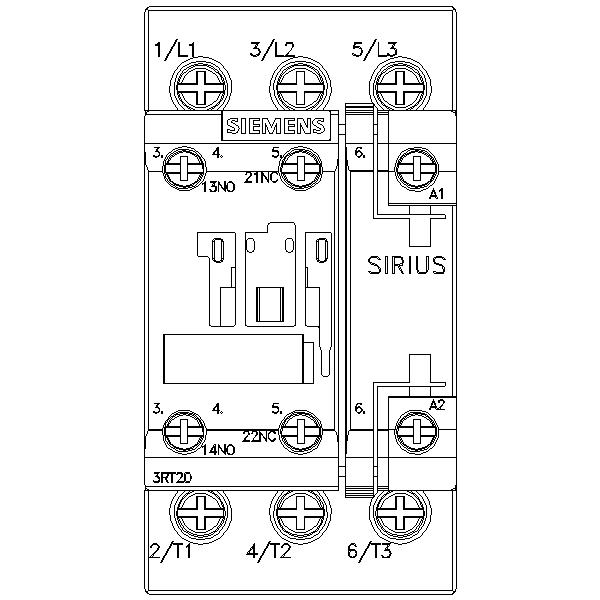

3RT2027-1AK60 - Siemens 32A 3-Pole Motor Contactor 110/120V AC Coil DIN Rail Mount S0 Frame

3RT2027-1AK60

3RT2027-1AK60 is a Siemens Sirius 3-pole motor contactor designed for reliable motor control applications.This IEC-rated contactor features a 32 amp rating with a 110/120V AC coil voltage, suitable for 3-phase motors up to 10 HP at 230V and 20 HP at 460V. It mounts on a standard 35mm DIN rail and includes 1 normally open and 1 normally closed auxiliary contact. The contactor is part of the S0 frame size series and meets IEC 60946 standards with IP20 protection. It supports screw terminal connections and operates within a temperature range of -25 to 60°C.

Key Specifications
• Amperage: 32A
• Voltage: 110/120V AC coil
• Poles: 3-pole
• Mounting Type: DIN rail (35mm)
• Frame Size: S0
• Horsepower Rating: 10 HP @ 230V, 20 HP @ 460V
• Auxiliary Contacts: 1 NO, 1 NC
• Protection Class: IP20
• Standards: IEC 60946, UL Listed, CSA Certified, CE Marked
• Operating Temperature: -25 to 60°C
• Connection Type: Screw terminals

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3RT2027-1AK60
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Sirius
• Type : 3RT20
• Voltage : 600
• Amperage : 32
• Phase : 3
• Poles : 3
• Temp Rating : -13-158 ¡F (-25-70 ¡C)
• Coil Voltage Maximum : 120

Product Data

• UPC : 662643915730
• GTIN : 00662643915730
• Weight : 1
• Temp Rating : -13-158 ¡F (-25-70 ¡C)
