Description
3RT2027-2AB04

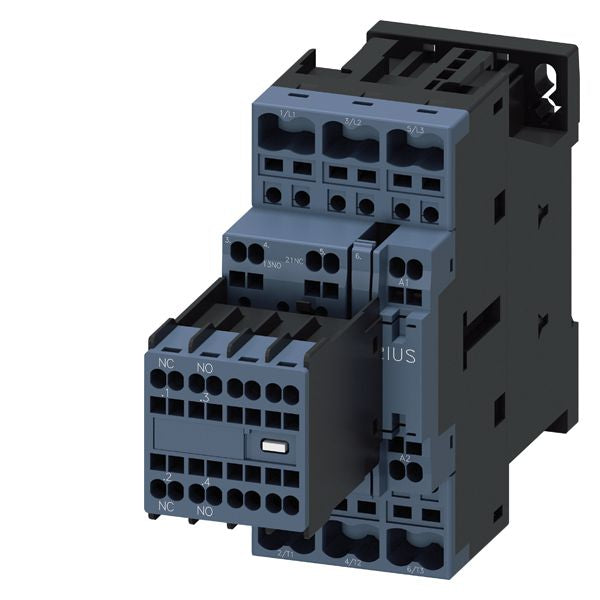

3RT2027-2AB04 is a Siemens power contactor designed for AC-3 duty cycle applications with a rated current of 32 amperes and maximum switching capacity of 15 kilowatts at 400 volts. This 3-pole contactor features a compact size S0 frame and is rated for 24 volts AC control supply at 50 Hz operation. The unit includes 2 normally open and 2 normally closed auxiliary contacts for flexible circuit control and monitoring. Spring-type terminals provide secure and reliable electrical connections suitable for industrial motor control applications. The contactor operates across a temperature range from -25 degrees Celsius to +60 degrees Celsius and supports both snap-in and screw-fit mounting configurations. A removable auxiliary switch block allows for customization of contact configurations to meet specific application requirements.
- Rated Current: 32 A
- Maximum Switching Capacity: 15 kW
- Rated Voltage: 400 V AC
- Control Supply Voltage: 24 V AC, 50 Hz
- Number of Poles: 3
- Auxiliary Contacts: 2 NO + 2 NC
- Terminal Type: Spring-Type
- Frame Size: S0
- Mounting Type: Snap-in, Screw-fit
- Operating Temperature Range: -25 to +60 degrees Celsius
- Duty Cycle: AC-3
- Removable Auxiliary Switch Block: Yes
Specifications
- Part Number: 3RT2027-2AB04
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT20
- Voltage : 600
- Amperage : 32
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 24
Product Data
- UPC : 066264391601
- GTIN : 00662643916010
- Weight : 1
