Description
3RT2027-1CL24-3MA0

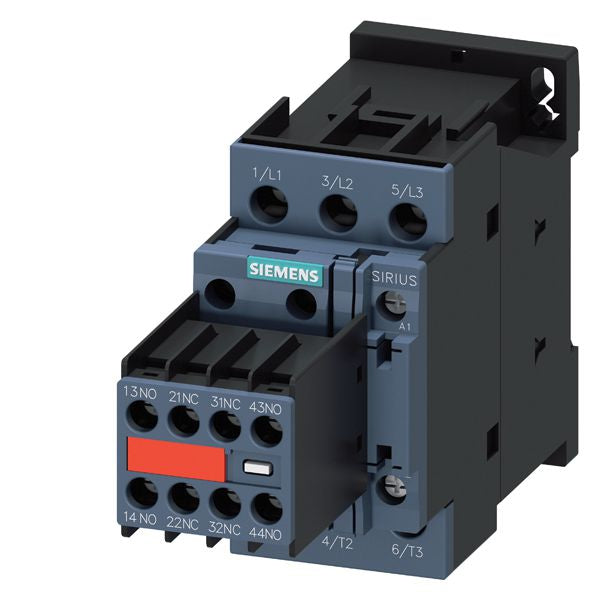

3RT2027-1CL24-3MA0 is a Siemens motor control contactor designed for reliable switching of motor loads in industrial applications. This contactor features a 3-pole configuration, 32A current rating, and is compatible with 230VAC coil voltage for operation at 50/60 Hz. It is suitable for use with motors up to 15kW at 400V and is built for easy DIN rail or vertical mounting with screw terminals. The contactor is part of the Siemens SIRIUS S0 series and includes 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts. It is designed for robust performance in demanding environments and supports series installation for flexible system integration.
- 32A rated current
- 3-pole configuration
- 230VAC coil voltage, 50/60 Hz
- 15kW at 400V
- Size S0 frame
- Screw terminal connection
- 35 mm DIN rail or vertical mounting
- 2NO + 2NC auxiliary contacts
- Maximum switching voltage: 690VAC
- Operating temperature: -25°C to 60°C
- Suitable for series installation
- Includes inserted varistor
Specifications
- Part Number: 3RT2027-1CL24-3MA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT20
- Voltage : 600
- Amperage : 32
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 230
- Coil Voltage Minimum : 230
Product Data
- UPC : 662643915938
- GTIN : 00662643915938
- Weight : 1
