Description
3RT2027-1AV04

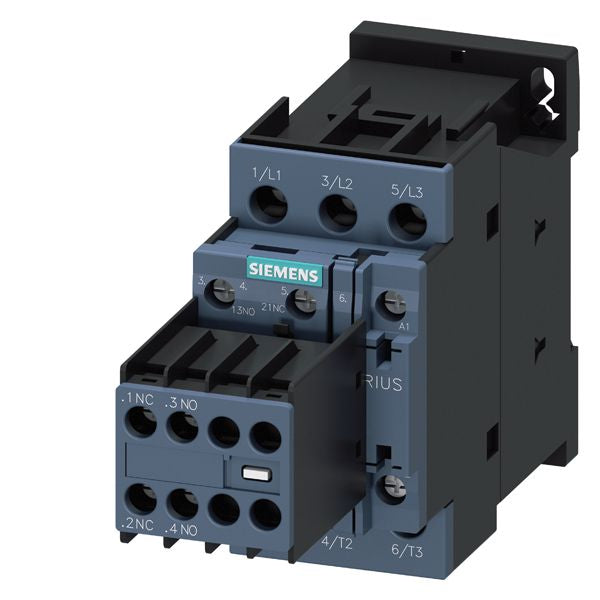

3RT2027-1AV04 is a Siemens SIRIUS power contactor designed for AC-3 duty cycle applications with a rated current of 32 amperes and power handling capacity of 15 kilowatts at 400 volts. This 3-pole contactor features a compact size S0 frame and is rated for 400 volts AC at 50 Hz operation. The unit includes removable auxiliary contacts configured as 2 NO (normally open) and 2 NC (normally closed) contacts for flexible control logic integration. Screw terminal connections provide secure and reliable electrical termination. The contactor operates across a temperature range of -25°C to +60°C and features a maximum switching voltage of 690 VAC, making it suitable for demanding industrial motor control and power distribution applications.
- Rated Current: 32 Amperes
- Power Rating: 15 kW at 400V
- Duty Cycle: AC-3e/AC-3
- Poles: 3-pole
- Control Voltage: 400V AC, 50 Hz
- Auxiliary Contacts: 2 NO + 2 NC
- Frame Size: S0
- Termination: Screw Terminal
- Maximum Switching Voltage: 690 VAC
- Operating Temperature: -25°C to +60°C
- Auxiliary Switch: Removable
- Weight: 0.47 kg
Specifications
- Part Number: 3RT2027-1AV04
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT20
- Voltage : 600
- Amperage : 32
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 400
Product Data
- UPC : 004089295952
- GTIN : 00040892959529
- Weight : 1
