Description

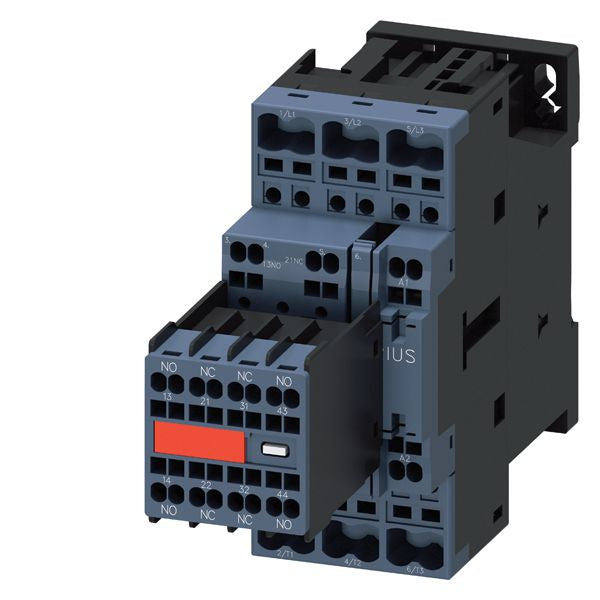

3RT2025-2CL24-3MA0
3RT2025-2CL24-3MA0 is a Siemens SIRIUS 3RT2 series power contactor designed for AC-3 motor control applications with a rated current of 17 A at 7.5 kW / 400 V. 3RT2025-2CL24-3MA0 features a 3-pole configuration with 2 NO and 2 NC auxiliary contacts, 230 V AC coil supply for both 50 Hz and 60 Hz operation, and spring-type terminals with captive auxiliary contacts. The contactor includes an inserted varistor for enhanced protection and is rated for a maximum switching voltage of 690 VAC. Size S0 frame design provides compact installation in motor control centers and industrial automation systems.
- Rated Current: 17 A AC-3
- Power Rating: 7.5 kW at 400 V
- Coil Voltage: 230 V AC 50/60 Hz
- Poles: 3-pole
- Auxiliary Contacts: 2 NO + 2 NC
- Maximum Switching Voltage: 690 VAC
- Terminal Type: Spring-type with captive auxiliary
- Frame Size: S0
- Operating Temperature: -25 degrees C to 60 degrees C
- Series: SIRIUS 3RT2
- Varistor: Inserted
Specifications
- Part Number: 3RT2025-2CL24-3MA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT20
- Voltage : 600
- Amperage : 16
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 230
- Coil Voltage Minimum : 230
Product Data
- UPC : 066264391474
- GTIN : 00662643914740
- Weight : 1
